Engineered to quantify the movement of bulk fluid, our flow monitors work in one of two ways - either by accumulating a fixed volume of fluid and counting the number of times the volume is filled to the measure flow, or by relying on forces produced by the flow stream as it overcomes constriction.
With a maximum pressure of over 400 bar and a choice of cast iron, brass, stainless steel or plastic body materials, our flow monitors are as versatile as they are robust.
The FC310 flowmeter consists of a SITRANS FCS300 sensor and a SITRANS FCT010 transmitter. Sizes: DN15 (½"), DN25 (1"), DN50 (2"), DN80 (3"), DN100 (4"), DN150 (6") Accuracy: ±0.10 % or ±0.20 % Repeatability: ±0.05 % Density accuracy: 2 or 10 kg/m 3

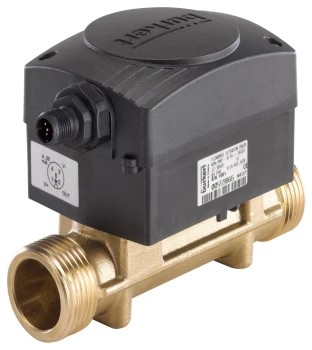

Connection ½”, ¾”, 1”, 2” Flow- and temperature measurement Dosing function with external control output Colored, multi-parameter configurable TFT display,rotatable 90° Bidirectional measuring Intuitive setup menu via 4 optical touch keys 2 freely configurable outputs All-metal design: stainless steel
High accuracy. Medium with high viscosity. Mounting and dismounting of the sensor head by a quarter-turn. Connection to Burkert devices in remote versions.

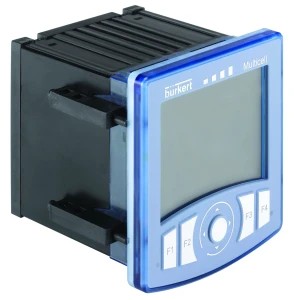

Display: LC graphic display, light blue backlit; 128x168 pixels resolution; German, English, French languages. Keypad: 4 soft keys [F1] [F2] [F3] [F4] for dynamic functions 1 central navigation key.
DN 3 up to DN 100, Measuring range 0-10 l/h, 0-280 m3/h, Accuracy +/- 0.2%. Process connection DIN 11851, Tri-Clamp, Threaded ISO 228-1 and NPT, Flanged DIN 2501, ANSI 150 RF. Body materials: Stainless steel, Carbon Steel. Lining PTFE or PP

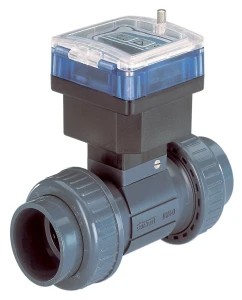

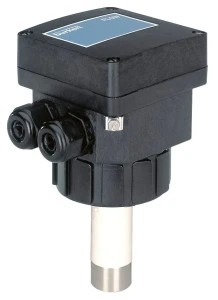

Measuring range 0.05 - 10 m/s, Repeatability =/-0.25% o.R. Display 8-digit LC-display, Fluid conductivity > 20 uS, Fluid temperature maximum 0 to 80°C, Sensor material Body in PVDF electrodes Stainless Steel.

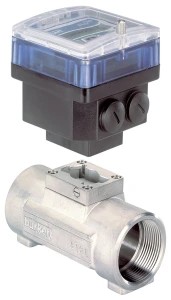

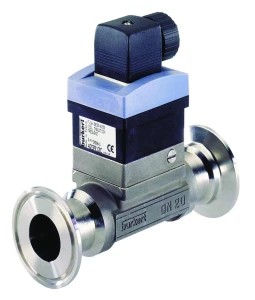

Paddle wheel technology (DN6 to DN65), Flow indication including 2 totalisers with optional alarm relays, 4-20mA and calibrated pulse output, Available as compact version with options for remote mounting.

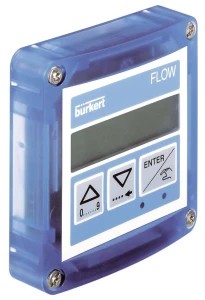

Indication, monitoring, transmitting and On/Off control in one device. Programmable outputs (transistor or relay). Automatic-calibration: Teach-In. Communication - external setpoints and process value (4-20 mA).

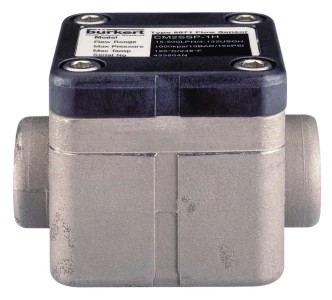

For highly viscous fluids. Electronics for indication, monitoring, transmitting, On/Off. control and batch control.
Engineered to the highest technical specifications, all of our components come with a comprehensive warranty, so you can always rely on Fine Controls to deliver on quality as well as price.
And with over twenty years' worth of experience in the industry, all of our staff are fully qualified engineers, so if you can't find out what you need to know from our downloadable manuals and TechSpecs, please feel free to give us a call on +44 (0) 800 328 8511, or contact us via our online enquiry form.
