Fine Controls offer an extensive range of Burkert products, one of the leading manufacturers for control and measuring systems.
Founded in Germany over 60 years ago by Christian Burkert, the company has established itself as a global leader in fluid control systems, all manufactured to the very highest quality using state-of-the-art technology.
Whether ink is decorating mobile phone cases, colouring huge windowpanes or patterning fashionable apparel– customers expect print to be vibrant in colour, accurately delivered and supremely durable. Dense and opaque layers without ink degradation are the core of any durable creation. No need to worry: Bürkert’s solenoid valve variants are stunningly durable. In-house moulding processes master materials like peroxide cross-linked EPDM, plus separating flowing media technologies will give you highest chemical resistance to ink and solvent. No blocking, no dried ink, and residuefree flushability.

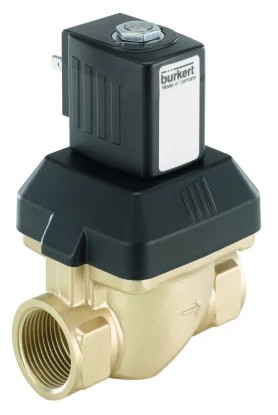

Port size 1/2" - 2" Pressure range 0-16 bar, operates with zero differential pressure Temperature media ranges covering -30°C to +120°C Body material Brass or Stainless Steel, Seal material NBR, FKM, EPDM Options -.The standard brass housing satisfies all European drinking water requirements, WRAS Approved Materials on request
Port size 1/4" - 2" Pressure range 0-10 bar, Temperature media ranges covering -30°C to +120°C Body material Brass or Stainless Steel, Seal material NBR, FKM, EPDM Options - Explosion protection Ex to Eurostandard.The standard brass housing satisfies all European drinking water requirements, WRAS Approved Materials on request
Orifice Size: DN13 - DN50 Body Material: Brass or Stainless Steel on request Seal Material: NBR, EPDM, FKM Media Temperature: Up to 120C WRAS Approved Materials
Pressure 0.2 - 10 bar, Ports G1/2' - G21/2', Orifice DN 13 to 65 mm, Voltages 24, 110, 230 V/UC, Duty cycle 100% continuously rated, IP65, EEx m II T4 with moulded cable & EEx me II T4 with terminal box.
Type 8905 Online Analysis System is a modular system for monitoring all important water parameters on one platform. The Type 8905 is a multichannel multifunction unit for the Bürkert sensor cubes and electronic modules from the EDIP platform. The efficient device integration platform (EDIP) allows the high flexibility by using modularity in the hardware as well as in the software of the system
Time range: 0.5s-10 s up to 0.5 h-10 h, Adjustment: 4 Function and time range via DIP switches, precision adjustment via potentiometers Operating voltage: 12-24 DC; 24-48 VDC/AC 50-60Hz; 110-230 V DC/AC 50-60Hz;
Input fuel impulse. Input diesel detection. PWM-outputs for control of proportional valve.
Port size 1/2' - 2 1/2', Pressure range 0-16 bar, Temperature media -10-°C to +180°C, Body material Gunmetal, Stainless Steel, Options: Double-acting actuator, Weld-end connection, Electrical position feedback & Manual override.
Port Connection: G 1/2, G 3/4, G 1, G 1 1/4, G 1 1/2, G 2 Body Material: Gunmetal Seal Material: PTFE Max Pressure: 16 Bar Maximum Temperature 180°C Multi function
Port Connection: Flange. Body Material: Cast stainless steel 316L. Seal Material: PTFE (NBR, FKM and EPDM on request). Max Pressure: 16 Bar. Compact globe valve version. Available with flow direction below and above seat.
DN15 to DN100. Body: PVC-U, PP, PVDF. Seals: EPDM, PTFE/EPDM. Max P: 10 Bar. Applications with aggressive media. Flow-optimised body with zero dead volume. Self-draining installation possible.
Port size 1/4' - 2', Pressure range 0-10 bar, Temperature media -10°C to +140°C, Body material Stainless steel.
2/2-way Angle-Seat Valve with stainless steel design for media up to +185
Port Connection: G 1/4. Body Material: Stainless steel 1.4401. Seal Material: Stainless steel/PCTFE. Max Pressure: 250 Bar. Direct-acting, normally closed and normally open. Electrical connection cable plug Form A. Also available with ATEX approval.
2/2-way Angle-Seat Control Valve with stainless steel design for media up to +185 Port Connection: DN15 - 65 Body Material: 316L Stainless Steel Actuator: PPS Ambient Temperature: 0-55C

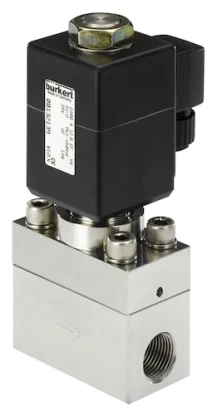

Port Connection: G 1/4, G 3/8, G 1/2. Body Material: Stainless steel, brass and stainless steel, nickel-plated. Seal Material: PEEK/FKM; PCTFE/FKM; PTFE/FKM. Max Pressure: 250 Bar. For high pressures. servo-assisted
Installation width 16 mm, Protection class IP 65, Numerous variants, Also available with moulded-on cable connection, Contact form 8 mm.

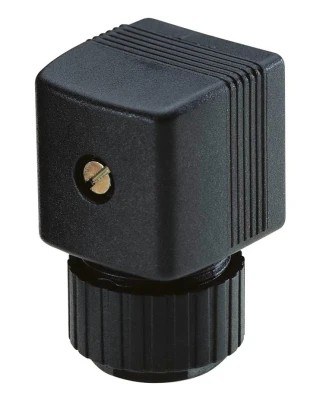

Complete program, Contact form 18 mm, Also available with LED indicator, Optional 4-pin version for pressure switch or impulse valves respectively, Versions with high-power, power reduction and inverter for impulse valves.
Port Connection: G 1/4, G 3/8, G 1/2. Body Material: Brass with stainless steel seat 1.4305 or stainless steel body 1.4581. Seal Material: FKM, PTFE (others on request). Max Pressure: 100 Bar. Maximum Temperature 180°C.
Input: 4-20mA, 0-20mA & 0-10V. Maximum operating pressure 16 bar. Body Stainless steel . Plug/stem Stainless steel. Integrated, cascaded process controller with parameter definable PID-algorithm. LCD/key pad,menu-guided program & code-protection.
Burkert supplies everything from high-tech sensors to simple valves and our vast range includes Solenoid Valves, Modular Pneumatics, Analytical Sensors and much more. Use the filters to find the product you need.
Whatever industry you work in be it Hygienic Processing, Gas Handling, Water Treatment or more, Fine Controls has got it covered.
All our Burkert products have been hand-selected for their reliability and longevity, and they are all available at a competitive rate.
Why Do We Supply Burkert Products?
There's a reason why we choose to distribute Burkert products. The firm stands for quality and expertise and they manufacture comprehensive products around the world in over 35 countries.
Their global presence ensures that all stockists receive full service and support and the brand is continually seeking new technologies to offer you, the customer, the very best solutions.
What's more, Burkert's research and development investment are one of the highest in the industry which means they strive to deliver the most sophisticated systems and comprehensive fluid control technology.
Get peace of mind that you are getting the very best service at the very best price with Fine Controls. For expert knowledge on any of the products, call the leading Burkert Distributors today on 0151 343 9966
