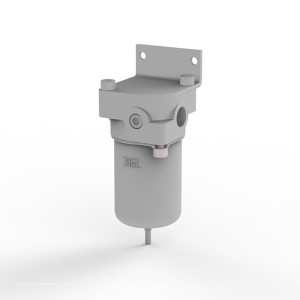

316 Stainless steel throughout. Large flow paths minimise pressure drop. Rolling diaphragm design. Precision adjustment. Filter Unit. 1/4', 1/2', 3/4' NPT and BSP.

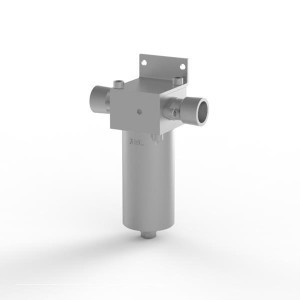

316 Stainless steel throughout. Large flow paths minimise pressure drop. Integral mounting holes. Tagging facility built in. Filter Unit. 3/4', 1', NPT (BSP option available)
Output Range 0-120 psig Maximum Supply Pressure 150 psig Sensitivity 1” (2.5 cm) of water Air Consumption Less than 5 SCFM (0.17 m3/hr)
Recommended Flow for Optimum Efficiency 1 0.5 scfm at 75 psig Maximum Supply Pressure 1000 psig (69 bar) Pressure Droop Through Filter with 75 psig Supply Pressure and 0.5 scfm flow approximately 1/4 psi (2 kPa) Materials of Construction Brass, lamb's wool, and neoprene.
Max Supply Pressure: 300 psig Max Output Pressure: 120 psig Flow Capacity: 42.5 m3/hr Accuracy: 0.5 psi The Fairchild Model 65 filter service pressure regulator is a general purpose service regulator with an integral ...
