Fairchild

Filter Products Close Filters

Fine Controls are proud to be a distributor of Fairchild products, including Fairchild Pressure Regulators, Pneumatic relays, I-P Converters and Volume Boosters

Our in house team have spent years working with Fairchild products across a diversity of applications, and are well equipped to advise you on the range.

FAIRCHILD HPD & HPP - HIGH PRESSURE PRECISION REGULATOR Model Number: HPD & HPP

Up to 6000 psig supply pressure. Variety of spring ranges covering 0-3000psi outlet pressure. 1/4" NPT/BSPT Ports. Inconel diaphragm suitable for liquid or gas use.

FAIRCHILD MANIFOLD AND RACK KIT Model Number: KIT

Supply Ports 3/4' NPT on manifold ends. Outlet Ports 1/8' NPT vertically on the bottom.

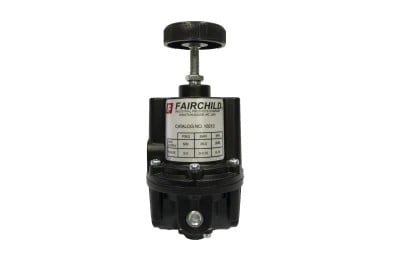

FAIRCHILD MODEL 10 - PRECISION PRESSURE REGULATOR Model Number: 10

Supply pressure 500 psig Maximum. Sensitivity less than 1/8' Water Column. Adjustment range 0-2 psig to 5-400 psig. Pipe Size 1/4' NPT - 1/2' NPT/BSPT.

FAIRCHILD MODEL 100 - PRECISION PRESSURE REGULATOR Model Number: 100

Flow capacity in excess of 3000 SCFM (150 psig supply 40 psig set). Maximum supply pressure 250 psig. Adjustment range 0-10 psig to 2-150 psig. Pipe size 1' NPT - 1 1/2' NPT.

FAIRCHILD MODEL 1000 - PRECISION PRESSURE REGULATOR Model Number: 1000

Flow capacity 50 SCFM (100 psig supply 20 psig set point). Sensitivity 0.5" W.C. Supply pressure 250 psig maximum. Adjustment range 1/2-10 psig to 2-150 psig. Pipe size 1/4'NPT - 3/8' NPT/BSPT.

FAIRCHILD MODEL 10BP - BACK PRESSURE REGULATOR Model Number: 10BP

System Pressure 500 psig maximum. Sensitivity Less than 1/8' Water Column. Adjustment range 0-2 to 5-400. Pipe size 1/4' NPT - 1/2' NPT/BSPT.

FAIRCHILD MODEL 11 - PRECISION PRESSURE REGULATOR Model Number: 11

Supply pressure 150psi max. Sensitivity 0.05' Water Column. Adjustment ranges from 0-0.5psi to 0-12 psi. Pipe Size 1/4' to 1/2' NPT/BSP.

FAIRCHILD MODEL 14 - POSITIVE & NEGATIVE BIAS RELAY Model Number: 14

Flow capacity 40 SCFM @ 100 psig supply, 20 psig set point. Sensitivity 1/2' Water Column. Supply Pressure 250 psig maximum. Output Pressure 150 psig maximum. Pipe size 1/4' NPT - 3/8' NPT/BSPT.

FAIRCHILD MODEL 15 - POSITIVE BIAS RELAY Model Number: 15

Flow Cap. 40 SCFM @ 100 psig. Sensitivity 1/4' Water Column. Supply Pressure 250 psig max. Output Pressure 150 psig max.

FAIRCHILD MODEL 1500A - POSITIVE BIAS RELAY Model Number: 1500A

Supply pressure 250 psig max. Flow capacity (SCFM) 150 . Sensitivity 1' Water Column. Adjustment range 0.5-10 psig.

FAIRCHILD MODEL 16 - VACUUM REGULATOR Model Number: 16

Supply Pressure 250 psig Maximum. Sensitivity 1/2' Water Column. Pipe Size 1/4' NPT - 3/8' NPT/BSPT.

FAIRCHILD MODEL 1600A - VACUUM REGULATOR Model Number: 1600A

Supply Pressure 250 psig Maximum. Sensitivity 1' Water Column. Pipe Size 3/8' NPT - 3/4' NPT/BSPT.

FAIRCHILD MODEL 17 - VACUUM REGULATOR Model Number: 17

Max Vacuum Capacity 30inHg. 1/2' water gauge control senstivity. 1/4', 3/8' and 1/2' Pipe sizes.

FAIRCHILD MODEL 18 - VACUUM RELIEF REGULATOR Model Number: 18

Control Sensitivity of 1/8' water column for precision applications. Max Vacuum capacity 30inHg. 1/4' 3/8' and 1/2' Pipe sizes.

FAIRCHILD MODEL 20 - VOLUME BOOSTER Model Number: 20

Maximum Output Pressure 150 psig. Maximum Supply Pressure 250 psig. Flow Capacity SCFM @ 100 psig supply 45, 20 psig output. Sensitivity 1/4' Water Column. Pipe size 1/4' NPT - 3/8' NPT/BSPT.

FAIRCHILD MODEL 200 - VOLUME BOOSTER Model Number: 200

Supply Pressure 250 psig Maximum. Output Pressure 150 psig Maximum. Flow Capacity (SCFM) 830 @100 psig, 20 set point. Sensitivity 1' Water Column. Pipe Size 1' NPT - 1 1/2' NPT.

FAIRCHILD MODEL 2000 - VOLUME BOOSTER Model Number: 2000

Maximum Supply Pressure 250 psig. Maximum Output Pressure 150 psig. Flow Capacity (SCFM) 40 @ 100 psig & 20 psig set point. Sensitivity Less than 1' Water Column. Ratio 1:1 - 1:1.6. Pipe size 1/4' NPT - 3/8' NPT/BSPT.

FAIRCHILD MODEL 200XLR - VOLUME BOOSTER Model Number: 200XLR

Supply Pressure 250 psig Maximum. Output pressure 150 psig Maximum. Sensitivity 1' Water Column. Pipe size 1 1/2' NPT.

FAIRCHILD MODEL 21 - ADJUSTABLE RATIO RELAY Model Number: 21

Flow capacity 40 SCFM @ 100 psi supply, 20 psi set point. Sensitivity 0.5' Water Column. Supply pressure 250 psi maximum, Out let pressure 150 psi maximum. Ratio range 30:1 through 1:30. Pipe size 1/4' NPT - 3/8' NPT/BSPT.

FAIRCHILD MODEL 22 - COMPUTING RELAY Model Number: 22

Adjustable bias over range -18 to + 15 psig. Input and output pressure range 3-15 psig. Maximum operating pressure: Signal and output 50 psig Supply 150 psig. Pipe size 1/4' NPT - 3/8' NPT.

FAIRCHILD MODEL 24 - SNAP ACTING RELAY Model Number: 24

Maximum supply pressure 120 psig. Signal range 2' Water Column to 120 psig. Repeatability 0.2' Water Column. Adjustment range 2' W.C.-10 to 2.0-120. Inlet and Outlet 1/4' 3/8'.

FAIRCHILD MODEL 2400 - PRECISION PRESSURE REGULATOR Model Number: 2400

Wide choice of input signals inputs. Option for limit switches. Locks last position. Available in 4 AC motor speeds.

FAIRCHILD MODEL 24XFS - LOW PRESSURE GAS MOTORISED REGULATOR Model Number: 24XFS

Range 0-20' Water. Power Supply 12-24 VDC. DC Pulse Input with 24VDC. IP65.

FAIRCHILD MODEL 25 - REVERSING RELAY Model Number: 25

Flow capacity 40 SCFM @ 100 psi supply, 20 psi set. Sensitivity 1/8' Water Column. Supply Pressure 250 psi maximum. Output pressure 150 psi maximum. Adjustment range 0-10 psig to 2-150 psig. Pipe size 1/4' NPT - 1/2' NPT/BSPT.

FAIRCHILD MODEL 2500A - BIASING REVERSING RELAY Model Number: 2500A

Supply Pressure 250 psig Maximum. Output Pressure 150 psig Maximum. Flow Capacity (SCFM) 150 @ 100 psig supply & 20 psig set point. Sensitivity 1' Water Column. Adjustment range 0.5-10 psig to 2-150 psig. Pipe size 3/8' NPT - 3/4' NPT.

FAIRCHILD MODEL 30 - PRECISION PRESSURE REGULATOR Model Number: 30

Supply Pressure 250 psig Maximum. Flow Capacity 40 SCFM (68 m3/HR) @ 100 psig. Sensitivity 1/4' Water Column. Adjustment Range 0-2 psig to 2-100 psig. Pipe Size 1/4' NPT - 3/8' NPT/BSPT.

FAIRCHILD MODEL 30BP - BACK PRESSURE REGULATOR Model Number: 30BP

System Pressure 150 psig Maximum. Sensitivity 1/4' Water Column. Adjustment range 0-2 to 2-100. Pipe size 1/4' NPT - 3/8' NPT/BSPT.

FAIRCHILD MODEL 3400 - PRECISION PRESSURE REGULATOR Model Number: 3400

High flow and exhaust capacity. Compact. Maybe used to control high flows in minimum time. Provides immunity to supply pressure variations.

FAIRCHILD MODEL 4000A - PRECISION PRESSURE REGULATOR Model Number: 4000A

Pressure Range: 0.5-10 to 5-250. Supply Pressure: 250 psig maximum. Sensitivity:

Showing 1 to 30 of 62 (3 Pages)

Some of our Fairchild product range is available to buy online, while we’ve much more in our warehouse available to be shipped next day.

Now part of Rotork’s Instruments division, Fairchild Industrial Products Company specialise in manufacturing high precision pneumatic controls and power transmission products, including a full range of market leading regulators, boosters, relays and transducers.

Fairchild’s products are popular in applications which require precision control of pneumatics and motion control equipment.

Supplying products to the Gas and Oil industries as well as pharmaceutical and biomedical equipment, tyre manufacturing machinery, robotics, food processing and chemical manufacturing, the global company has a well deserved reputation for quality.

Browse our product range and buy online or contact us to place an order today.
