Fairchild Pressure Regulators

Filter Products Close Filters

Fine Controls is proud to be Europe's largest stockist of Fairchild Industrial Products and has built up a reputation for being the 'go-to' company for Fairchild products in terms of fast, reliable service.

The Fairchild regulator range includes precision pressure regulators, precision back pressure, high-pressure regulators, motorised and low-pressure regulators.

  • Pipe sizes vary from 1/16" to 11/2"
  • Maximum supply pressure up to 6000 PSIG
  • Spring ranges from as low as 0-0.5psi (Model 11 Series)
  • Spring ranges up to 0-3000 PSIG (HPP high-pressure regulators)
FAIRCHILD HPD & HPP - HIGH PRESSURE PRECISION REGULATOR Model Number: HPD & HPP

Up to 6000 psig supply pressure. Variety of spring ranges covering 0-3000psi outlet pressure. 1/4" NPT/BSPT Ports. Inconel diaphragm suitable for liquid or gas use.

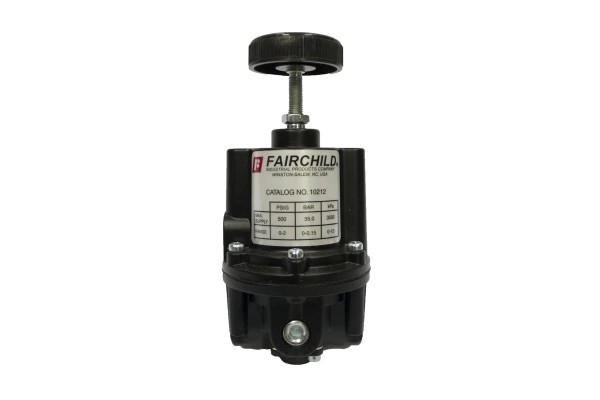

FAIRCHILD MODEL 10 - PRECISION PRESSURE REGULATOR Model Number: 10

Supply pressure 500 psig Maximum. Sensitivity less than 1/8' Water Column. Adjustment range 0-2 psig to 5-400 psig. Pipe Size 1/4' NPT - 1/2' NPT/BSPT.

FAIRCHILD MODEL 100 - PRECISION PRESSURE REGULATOR Model Number: 100

Flow capacity in excess of 3000 SCFM (150 psig supply 40 psig set). Maximum supply pressure 250 psig. Adjustment range 0-10 psig to 2-150 psig. Pipe size 1' NPT - 1 1/2' NPT.

FAIRCHILD MODEL 1000 - PRECISION PRESSURE REGULATOR Model Number: 1000

Flow capacity 50 SCFM (100 psig supply 20 psig set point). Sensitivity 0.5" W.C. Supply pressure 250 psig maximum. Adjustment range 1/2-10 psig to 2-150 psig. Pipe size 1/4'NPT - 3/8' NPT/BSPT.

FAIRCHILD MODEL 10BP - BACK PRESSURE REGULATOR Model Number: 10BP

System Pressure 500 psig maximum. Sensitivity Less than 1/8' Water Column. Adjustment range 0-2 to 5-400. Pipe size 1/4' NPT - 1/2' NPT/BSPT.

FAIRCHILD MODEL 11 - PRECISION PRESSURE REGULATOR Model Number: 11

Supply pressure 150psi max. Sensitivity 0.05' Water Column. Adjustment ranges from 0-0.5psi to 0-12 psi. Pipe Size 1/4' to 1/2' NPT/BSP.

FAIRCHILD MODEL 16 - VACUUM REGULATOR Model Number: 16

Supply Pressure 250 psig Maximum. Sensitivity 1/2' Water Column. Pipe Size 1/4' NPT - 3/8' NPT/BSPT.

FAIRCHILD MODEL 1600A - VACUUM REGULATOR Model Number: 1600A

Supply Pressure 250 psig Maximum. Sensitivity 1' Water Column. Pipe Size 3/8' NPT - 3/4' NPT/BSPT.

FAIRCHILD MODEL 17 - VACUUM REGULATOR Model Number: 17

Max Vacuum Capacity 30inHg. 1/2' water gauge control senstivity. 1/4', 3/8' and 1/2' Pipe sizes.

FAIRCHILD MODEL 18 - VACUUM RELIEF REGULATOR Model Number: 18

Control Sensitivity of 1/8' water column for precision applications. Max Vacuum capacity 30inHg. 1/4' 3/8' and 1/2' Pipe sizes.

FAIRCHILD MODEL 20 - VOLUME BOOSTER Model Number: 20

Maximum Output Pressure 150 psig. Maximum Supply Pressure 250 psig. Flow Capacity SCFM @ 100 psig supply 45, 20 psig output. Sensitivity 1/4' Water Column. Pipe size 1/4' NPT - 3/8' NPT/BSPT.

FAIRCHILD MODEL 200 - VOLUME BOOSTER Model Number: 200

Supply Pressure 250 psig Maximum. Output Pressure 150 psig Maximum. Flow Capacity (SCFM) 830 @100 psig, 20 set point. Sensitivity 1' Water Column. Pipe Size 1' NPT - 1 1/2' NPT.

FAIRCHILD MODEL 200XLR - VOLUME BOOSTER Model Number: 200XLR

Supply Pressure 250 psig Maximum. Output pressure 150 psig Maximum. Sensitivity 1' Water Column. Pipe size 1 1/2' NPT.

FAIRCHILD MODEL 2400 - PRECISION PRESSURE REGULATOR Model Number: 2400

PLEASE NOTE THIS PRODUCT IS NO LONGER AVAILABLE Wide choice of input signals inputs. Option for limit switches. Locks last position. Available in 4 AC motor speeds.

FAIRCHILD MODEL 24XFS - LOW PRESSURE GAS MOTORISED REGULATOR Model Number: 24XFS

PLEASE NOTE THIS PRODUCT IS NO LONGER AVAILABLE Range 0-20' Water. Power Supply 12-24 VDC. DC Pulse Input with 24VDC. IP65.

FAIRCHILD MODEL 30 - PRECISION PRESSURE REGULATOR Model Number: 30

Supply Pressure 250 psig Maximum. Flow Capacity 40 SCFM (68 m3/HR) @ 100 psig. Sensitivity 1/4' Water Column. Adjustment Range 0-2 psig to 2-100 psig. Pipe Size 1/4' NPT - 3/8' NPT/BSPT.

FAIRCHILD MODEL 30BP - BACK PRESSURE REGULATOR Model Number: 30BP

System Pressure 150 psig Maximum. Sensitivity 1/4' Water Column. Adjustment range 0-2 to 2-100. Pipe size 1/4' NPT - 3/8' NPT/BSPT.

FAIRCHILD MODEL 4000A - PRECISION PRESSURE REGULATOR Model Number: 4000A

Pressure Range: 0.5-10 to 5-250. Supply Pressure: 250 psig maximum. Sensitivity:

FAIRCHILD MODEL 4100A - HIGH FLOW/ LOW PRESSURE REGULATOR Model Number: 4100A

Control sensitivity of less then 0.05' water column. Provides high exhaust flows for responsive operation. Minimizes air consumption. Compensates for any pressure build up under flow.

FAIRCHILD MODEL 4500A - PNEUMATIC VOLUME BOOSTER Model Number: 4500A

Maximum Output Pressure 150 psig. Maximum Supply Pressure 250 psig. Flow Capacity 150 SCFM @ 100 psig supply SCFM, 20 psig set point. Ratio 1:1 to 3:1. Pipe size 3/8 NPT - 3/4 NPT.

FAIRCHILD MODEL 55 - POLYMER PRESSURE REGULATOR Model Number: 55

Max Supply Pressure:150 psig [10 BAR] Max Output Pressure: 100 psig [7 BAR] Flow Capacity: 9 SCFM (17 m3/HR) Accuracy: 0.3 psi (typ) The Fairchild Model 55 is a compact precision polymer pressure regulator for high performance applications where ...

FAIRCHILD MODEL 66 - PRECISION PRESSURE REGULATOR Model Number: 66

Pressure Range: 0-10 to 2-150psig. Supply Pressure: 500 psig (35 BAR) Maximum. Sensitivity: 1' (2.54cm) Water Column. Pipe Size:

FAIRCHILD MODEL 66BP - BACK PRESSURE REGULATOR Model Number: 66BP

System Pressure 150 psig Maximum. Flow Capacity 22 @ 100 psig system pressure. Ambient temperature (-65 C tp + 149 C). Adjustment range 0-10 to 2-150. pipe size 1/4' NPT.

FAIRCHILD MODEL 70B - PRECISION PRESSURE REGULATOR Model Number: 70B

Supply Pressure 250 psig Maximum & 50 psig Minimum. Flow Capacity 2.5 SCFM @ 100 psig supply and 30 psig set-point. Adjustment range 0-5 psig to 2-100 psig. 1/6' NPT Ports or M5 x 0.8 Threaded.

FAIRCHILD MODEL 80D - PRECISION PRESSURE REGULATOR Model Number: 80D

Maximum supply pressure 250 psig. Adjustment range 0-20 psig to 1-100 psig. Port size 1/8' - 3/8' NPT/BSPT.

FAIRCHILD MODEL 81 - PRECISION PRESSURE REGULATOR Model Number: 81

Flow capacity (nominal) 50 SCFM (100 psig supply 20 psig set). Sensitivity less than 0.1'. Maximum pressure 150 psig. Adjustment range (BAR) 0-2 psig to 1/2-100 psig.

Showing 1 to 27 of 27 (1 Pages)

In some cases, we're able to to offer next day or same-day express delivery services as our ex-stock portfolio has over 5000 Fairchild units. We also offer a range of services including special builds direct from our workshop.

Our technical sales office has been working with the entire Fairchild portfolio for over 30 years and offer full support and aftercare across the range. For more information on each product, just check each product downloadable Tech-Specs sheets or if you have a more complex application, our qualified team of engineers can advise on a number of brands including Siemens, Fairchild and Honeywell Contact us online or call on +44 (0) 800 328 8511
