Electromagnetic Flow Meters
Siemens and Burkert have an Electromagnetic flow sensor for every industry and process requirement. Available in sizes DN2 to DN2000. Select from either corrosion resistant stainless for general industry or for the food, beverage or pharmaceutical markets. Inline and insertion versions for water and wastewater applications. For process and chemical industries select from a variety of body, electrode and liner materials.
DN2 - DN100, Wafer pattern, Max temperature 200°C (HT Version) Choice of liner and electrode material, Mag 1100 Mag Flow Meter. Please see SIEMENS DANFOSS MAG 5000/6000 - For Flow Transmitter & Cable Kits.
Connection ½”, ¾”, 1”, 2” Flow- and temperature measurement Dosing function with external control output Colored, multi-parameter configurable TFT display,rotatable 90° Bidirectional measuring Intuitive setup menu via 4 optical touch keys 2 freely configurable outputs All-metal design: stainless steel

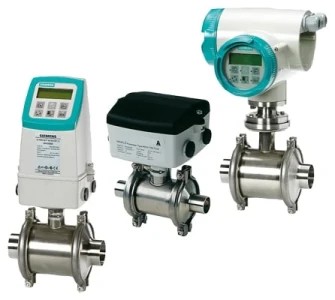

DN10 - DN100, Hygienic to 3A and EHEDG standards, Profibus, Modbus, Devicenet, Hart and CANOpen communication, Local of remote mount display/transmitter, Mag Flow Meter. Please see SIEMENS DANFOSS MAG 5000/6000 - For Flow Transmitter & Cable Kits.

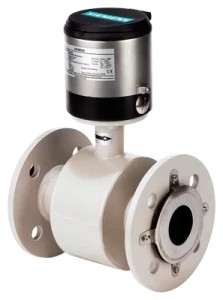

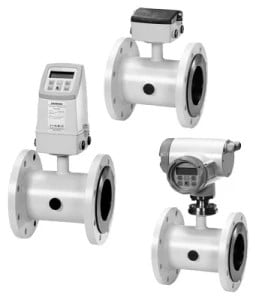

• Nominal Sizes ½” to 78” • Measuring range 0 – 100 bar • Enclosure ratings IP67 & IP68 • Temperature of medium -40 to 180°C (MAG3100 HT) • Mag Flow Meter For quick Delivery products please see MAG3100P Please see SIEMENS DANFOSS MAG 5000/6000 - For Flow Transmitter & Cable Kits.

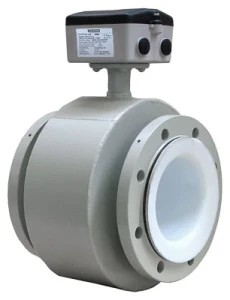

DN25 - DN1200, Flanged process connections, Max pressure 40 BAR, Rubber liner with 316 stainless steel electrodes, Mag Flow Meter Please see SIEMENS DANFOSS MAG 5000/6000 - For Flow Transmitter & Cable Kits.
Wall or rack mounted transmitter, Digital display, Choice engineering units, 4-20mA/pulse output, Mag Flow Transmitter.
ATEX certified, Hart, Profibus, Modbus and CANOpen communication, Local display, 4-20mA/pulse outputs, Mag Flow Transmitter.
Measuring range 0.05 - 10 m/s, Repeatability =/-0.25% o.R. Display 8-digit LC-display, Fluid conductivity > 20 uS, Fluid temperature maximum 0 to 80°C, Sensor material Body in PVDF electrodes Stainless Steel.
DN 3 up to DN 100, Measuring range 0-10 l/h, 0-280 m3/h, Accuracy +/- 0.2%. Process connection DIN 11851, Tri-Clamp, Threaded ISO 228-1 and NPT, Flanged DIN 2501, ANSI 150 RF. Body materials: Stainless steel, Carbon Steel. Lining PTFE or PP
