Midland-ACS is a previous partner of Xylem Flow Control Limited, a subsidiary of Xylem Inc, a leading global water technology provider but has recently been acquired by Rotork Instruments, who will now be renamed Rotork Midland Ltd.
It will sit within the Rotork Instruments Division, adding to its Fairchild, Soldo and YTC brands and it is hoped that the acquisition will further enhance Rotork's range of instrumentation products.
All the products have been selected for their reliability and longevity, and it is for this reason that Fine Controls offer a large selection of the firm's products for the oil, gas and petrochemical industries
Supply / Output connection: ¼', ½' or ¾' NPT (F). Signal Connection: ¼' NPT (F). Supply Pressure: Up to 150 psig (10.3 bar). Pressure Ratio: 1:1. Operating Supply Gases: Air, Nitrogen, Methane (Natural Gas)

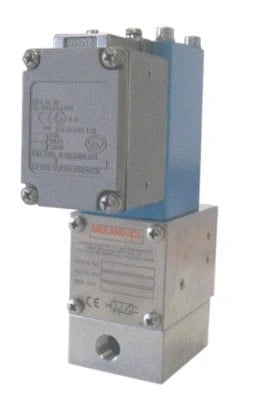

A ball seated version of the DN2 hydraulic control valve, the st/st seat and ceramic ball design ensures a leak tight shut off. The DN2 valve design incorporates a balanced internal piloting system and lever mechanism.
This version of the DN2 series features the new Cartridge Insert System, alternative to conventional ball-seated type internals. The one-piece Poppet Cartridge Insert System simplifies replacement and reduces repair costs.
An IECEX compliant DN2 series cartridge insert hydraulic control valve. St/St design ensures leak tight shut off and incorporates a balanced internal piloting system to enable the low powered coil to switch the valve at high pressures.
St/St seat and ceramic ball design ensure a leak tight shut off and a balanced internal piloting system and lever mechanism to enable low powered operators to switch the valve at high pressures.
Piston operator and ball seated design, ensures leak tight shut off and positive control. Can be supplied with a range of operators, for varied pressures & ambient temperatures, and be in-line mounted or subplate/multi-station manifold mounted.
IECEX compliant version of the DN5 series metal to metal seated hydraulic control valve. St/st design ensures leak tight shut off, incorporating a balanced internal piloting system enabling the solenoid coil to switch the valve at high pressures.
The fully st/st DN5 Pilot and Mainstage use cartridge insert technology to simplify replacement and reduce downtime costs. Features include 'O' Ring interfaces for subplate fitting or a manifold mount for use with actuators and wellhead applications.
IMPACT� range is a high integrity modular pneumatic actuator control assembly system in 316 Stainless Steel, used for the control and sequencing of process valve actuators on oil and gas facilities and pipelines.

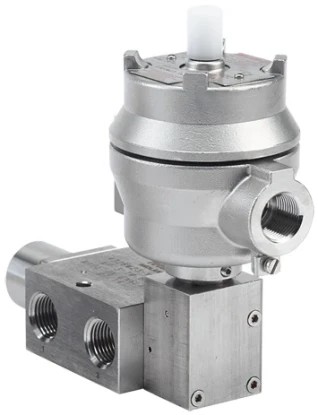

Hazardous area solenoids. Coil with 316 or aluminium housing. Closed centre. Atex Certification. CENELEC approvals. 1/4'NPT (BSP option available)
Hazardous area solenoids. Coil with 316 or aluminium housing. Block before bleed. 1/2'NPT (BSP option available). Atex Certification
High flow. Hazardous area solenoids. Coil with 316 housing. Atex Certification. CENELEC - UL approvals. 1/4' NPT and (BSP). Low temperature range.
Heavy duty. High flow. Critical applications. Hazardous area solenoids. 1/4' NPT (BSP optionavailable)
316 Stainless steel throughout. Large flow paths minimise pressure drop. Integral mounting holes. Tagging facility built in. Filter Unit. 3/4', 1', NPT (BSP option available)

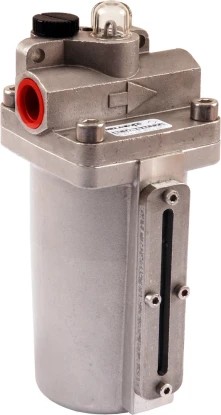

Accurate drip rate adjustment. Can be filled under pressure. Transparent sight feed dome. Built in flow sensor. Filter Unit. 1/2' NPT (BSP option not available)
316 Stainless steel throughout. Large flow. High relief flow. Integral mounting holes. 3/4', 1', NPT(BSP option available). Tagging facility built in.

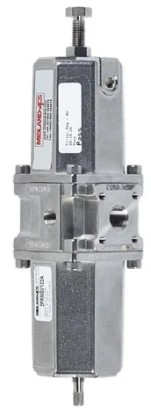

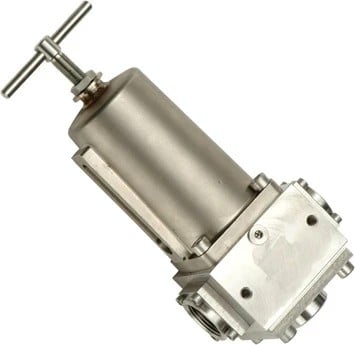

316 Stainless steel throughout. Large flow paths minimise pressure drop. Rolling diaphragm design. Precision adjustment. Filter Unit. 1/4', 1/2', 3/4' NPT and BSP.
316 Stainless steel throughout, Large flow characteristics, Rolling diaphragm design, High relief flow, Precision adjustment, Integral mounting holes, Filter Unit, 1/4', 1/2', 3/4' NPT (BSP option available).
316 Stainless Steel or Brass in-line flow regulators for uni-directional operation (free flow return). 316 Stainless Steel or Brass in-line flow regulators for bi-directional operation (separate flow control in each direction) 1/4', 3/8', 1/2' 3/4'
316 Stainless Steel needle valve with 3mm or 6mm orifice. 316 Stainless Steel exhaust flow regulator/ breather supplied complete with tamper proof cap. 1/4', 3/8' 1/2' NPT and (BSP option).
316 Stainless Steel non return valves for pressures up to 12 bar (174 psi). 316 Stainless Steel non return valves for pressures up to to 25 bar (362 psi). 1/4', 3/8', 1/2', 3/4', 1' NPT and (BSP option).
Compact / Lightweight. 5 pressure ratings. Integrated tagging facility. Fluoroelastomer seals. 3/2 and 5/2 versions. 1/4' NPT (BSP option available). 1/8' NPT Pilot port
Our Stainless Steel non-return valves are manufacture in two max pressure ranges, 12bar or 25bar, and are suitable for use on gas or liquid applications.
316 Stainless Steel shuttle valves for three way 'OR' function. Filtered lubricated or non-lubricated air, inert gas, sweet ( -20
Why Do We Supply Midland Products?
The brand is renowned globally as having an outstanding reputation for high quality process control and instrumentation.
XFC were a long-standing supplier of high quality solenoid valves and the acquisition to Rotork will enable the firm to further expand sales and coverage of Midland-branded products.
So for all your Midland ACS products, look no further than the leading distributor, Fine Controls.
Get peace of mind that you are getting the very best service at the very best price and for expert knowledge on any of the products, call the team today on 0151 343 9966.
