Used to measure linear, nonlinear, volumetric or mass flow rates of liquids, gases and vapours, flow meters are vital for monitoring the amount of media passing through them during a given time period, or for totalising quantities processed.
Consisting of a primary device, transducer and transmitter, we stock a comprehensive range of flow meters to suit all media, including Clamp On, Coriolis Mass, Electromagnetic, Liquid, Mass, Paddle Wheel, Positive Displacement, Ultrasonic, Variable Area and Vortex models.

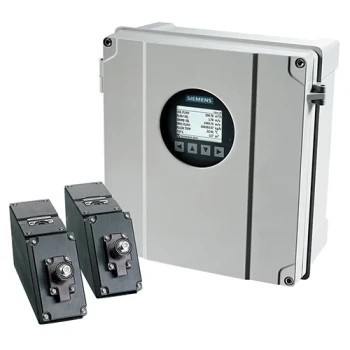

The SITRANS FS230 flow system consists of a SITRANS FST030 transmitter paired with SITRANS FSS200 clamp-on ultrasonic sensors, which are available in three different models: WideBeam® (High-Precision), Universal and High-Temperature. THIS PRODUCT REPLACES ALL PREVIOUS SIEMENS CLAMP ON UNITS FOR USE ON LIQUIDS.
The FC310 flowmeter consists of a SITRANS FCS300 sensor and a SITRANS FCT010 transmitter. Sizes: DN15 (½"), DN25 (1"), DN50 (2"), DN80 (3"), DN100 (4"), DN150 (6") Accuracy: ±0.10 % or ±0.20 % Repeatability: ±0.05 % Density accuracy: 2 or 10 kg/m 3
The FC330 flowmeter consists of a SITRANS FCS300 sensor and a SITRANS FCT030 transmitter. This compact sensor and built-in transmitter allow for more efficient skid and plant layout and direct intergartion Into DCS automation systems via Profibus 4.0, Modbus, HART 7.2 or as a standalone solution.
DN 3 up to DN 100, Measuring range 0-10 l/h, 0-280 m3/h, Accuracy +/- 0.2%. Process connection DIN 11851, Tri-Clamp, Threaded ISO 228-1 and NPT, Flanged DIN 2501, ANSI 150 RF. Body materials: Stainless steel, Carbon Steel. Lining PTFE or PP
• Nominal Sizes ½” to 12” • Measuring range 0 – 100 bar • Enclosure ratings IP67 & IP68 • Temperature of medium -40 to 150°C • Mag Flow Meter For quick Delivery products Please see SIEMENS DANFOSS MAG 5000/6000 - For Flow Transmitter & Cable Kits.
The flow rate controller, Type 8750, is a system to measure and control gases using the differential pressure principle. The reliable and robust system consists of an ELEMENT continuous control valve, Type 2301, with the compact process controller Type 8693 and two pressure transmitters, Type 8323.

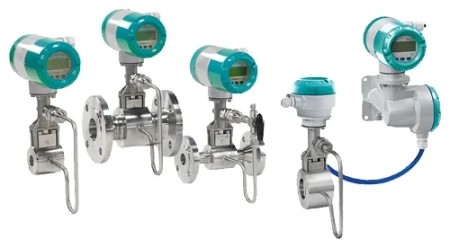

Take your steam, gas and liquid measurements to a whole new level with the digitally based SITRANS FX330 vortex flowmeter. Designed primarily for applications in auxiliary, supply and energy systems, this device is also highly versatile for use in the process industry. With its new features and enhanced functions like the integrated heat meter, NAMUR NE107 conform status alarms,and extensive Ex approvals, the SITRANS FX330 is also ideal for a broad range of chemical, power, and oil and gas installations.
• Nominal Sizes ½” to 78” • Measuring range 0 – 100 bar • Enclosure ratings IP67 & IP68 • Temperature of medium -40 to 180°C (MAG3100 HT) • Mag Flow Meter For quick Delivery products please see MAG3100P Please see SIEMENS DANFOSS MAG 5000/6000 - For Flow Transmitter & Cable Kits.
Paddle wheel technology (DN6 to DN65), Flow indication including 2 totalisers with optional alarm relays, 4-20mA and calibrated pulse output, Available as compact version with options for remote mounting.
The SITRANS FC430 is amongst the first Coriolis flowmeters to offer SIL 3 certification on the system, meeting the highest standards of safety and reliability.
The SITRANS FC410 flowmeter solution is the lightest and most compact Coriolis system worldwide – you can reduce skid size, fit multiple units into the tightest areas, simplify installation into both new and existing applications, and minimize costs.
Indication, monitoring, transmitting and On/Off control in one device. Programmable outputs (transistor or relay). Automatic-calibration: Teach-In. Communication - external setpoints and process value (4-20 mA).

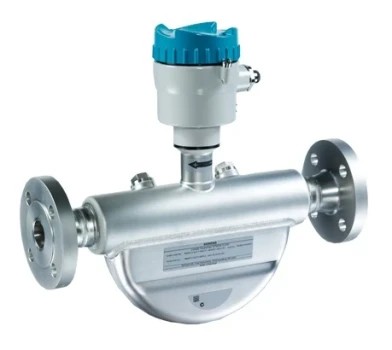

The SITRANS FCS400 is the market’s most compact sensor. The small size facilitates installation and replacement, and makes it possible to fit multiple units into tight spaces.
For highly viscous fluids. Electronics for indication, monitoring, transmitting, On/Off. control and batch control.
The SITRANS FCT030 transmitter delivers true multi-parameter measurements with enhanced efficiency, security and simplicity. It features a modular design for convenient installation and replacement,
High accuracy. Medium with high viscosity. Mounting and dismounting of the sensor head by a quarter-turn. Connection to Burkert devices in remote versions.
DN2 - DN100, Wafer pattern, Max temperature 200°C (HT Version) Choice of liner and electrode material, Mag 1100 Mag Flow Meter. Please see SIEMENS DANFOSS MAG 5000/6000 - For Flow Transmitter & Cable Kits.
Measuring range 0.05 - 10 m/s, Repeatability =/-0.25% o.R. Display 8-digit LC-display, Fluid conductivity > 20 uS, Fluid temperature maximum 0 to 80°C, Sensor material Body in PVDF electrodes Stainless Steel.
Accuracy 0.3% OFS (0.1% Repeatability), Liquids, Max Pressure 10bar, Max Flow 600mL/min.
Our brands include Burkert and Siemens, and with cast iron, brass, stainless steel and plastic bodies to choose from, and a wide selection of seal materials, there's sure to be a flow meter to meet the tough demands of every eventuality.
All our flow meters are available with downloadable manuals and technical data sheets, but if you have any special flow measurement challenges you'd like to discuss, our fully trained engineers are always on hand. Simply drop us a message online, or call our experts on +44 (0) 800 328 8511.
