Coriolis Mass Flow Meters

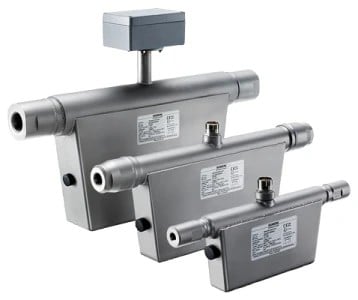

The SITRANS FCS400 is the market’s most compact sensor. The small size facilitates installation and replacement, and makes it possible to fit multiple units into tight spaces.
Mass flow rate, volume flow rate, density, temperature and fraction flow • Three built-in totalisers freely set for counting mass flow, volume flow, standard volume flow and fraction • Two-stage batch controller • Two digital inputs • Two digital outputs • Low flow cut-off • Configurable upper and lower alarm and warning limits • Comprehensive status and error reporting

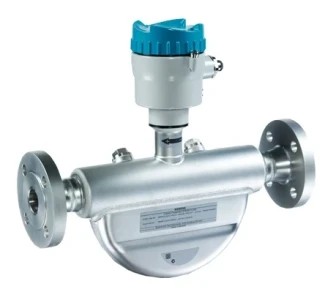

The FC330 flowmeter consists of a SITRANS FCS300 sensor and a SITRANS FCT030 transmitter. This compact sensor and built-in transmitter allow for more efficient skid and plant layout and direct intergartion Into DCS automation systems via Profibus 4.0, Modbus, HART 7.2 or as a standalone solution.

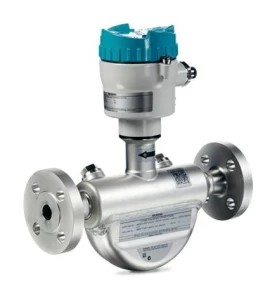

The SITRANS FC410 flowmeter solution is the lightest and most compact Coriolis system worldwide – you can reduce skid size, fit multiple units into the tightest areas, simplify installation into both new and existing applications, and minimize costs.

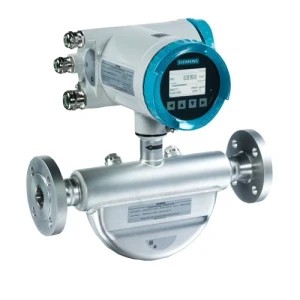

The SITRANS FC430 is amongst the first Coriolis flowmeters to offer SIL 3 certification on the system, meeting the highest standards of safety and reliability.
The SITRANS FCT030 transmitter delivers true multi-parameter measurements with enhanced efficiency, security and simplicity. It features a modular design for convenient installation and replacement,

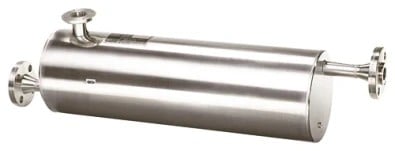

Stainless steel or hastelloy wetted parts, Max pressure 10 BAR, Max temperature 180°C, Safe or hazardous area duty, Coriolis mass Flow Meter.
Flow range 0.1 - 520000 kghr Stainless steel or hastelloy wetted parts Max pressure 410 BAR Safe or hazardous area duty Coriolis Mass Flow Meter
DN50 - DN150, Flow range 0-92,000kghr, Accuracy 0.15% , Max pressure 150 BAR, Coriolis Mass Flow Meter.
Measuring range kg/h (lbs/min) From 250 (9,2) to 30.000 (1.102,3). DN 10 to 25. Accuracy: 0.5 %. Pressure max 350 bar. Ambient -40 to 60°C. Medium temp -40 to 125°C. IP66 / IP67. ATEX: II
Local or remote mounted, Hart, Profibus, Modbus, CANOpen communication, 4-20mA/pulse output, Safe area duty, Coriolis Mass Flow Transmitter.
4-wire Pt1000 temperature measurement ensures accuracy on mass flow, density and fraction flow. Fraction flow computation based on 5 order algorithm matching all applications. USMII platform enables fitting of add-on bus modules without loss of function
Compact sensor design only 135x205x58 mm, Accuracy
