Type 8905 Online Analysis System is a modular system for monitoring all important water parameters on one platform. The Type 8905 is a multichannel multifunction unit for the Bürkert sensor cubes and electronic modules from the EDIP platform. The efficient device integration platform (EDIP) allows the high flexibility by using modularity in the hardware as well as in the software of the system
Time range: 0.5s-10 s up to 0.5 h-10 h, Adjustment: 4 Function and time range via DIP switches, precision adjustment via potentiometers Operating voltage: 12-24 DC; 24-48 VDC/AC 50-60Hz; 110-230 V DC/AC 50-60Hz;
Input fuel impulse. Input diesel detection. PWM-outputs for control of proportional valve.
Installation width 16 mm, Protection class IP 65, Numerous variants, Also available with moulded-on cable connection, Contact form 8 mm.

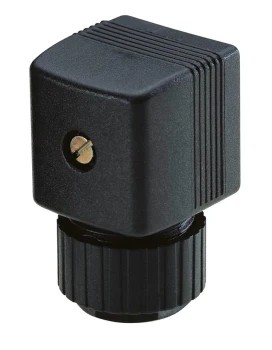

Complete program, Contact form 18 mm, Also available with LED indicator, Optional 4-pin version for pressure switch or impulse valves respectively, Versions with high-power, power reduction and inverter for impulse valves.
Port size 1/8' - 1/4' Pressure range 0-10 bar Body material Brass or PA Seal material FKM
Pressure 0-16bar Ports DN1.5-DN2.0. Seals FPM. Body Polyamide/brass. Seal FPM(Viton). Electrical con. With cable/terminal box. Neutral gases. Voltage 24, 110, and 230 V/UC. Duty cycle 100% continuous rated. EEx-m-II T4 / T6 and EEx-me-II T4/T6.
Microprocessor-controlled electronics. Switchable standard input signal. Infinitely variable PWM frequency. Optional RS232 or RS485 interface.
Continuous 2point 3point & On/Off control. Ratio control function. Sensor inputs (4-20 mA, 0-10 V, frequency, RDT). Control of proportional process & motor valves. Burkert proportional valves and flow meters are memorized. 1/16 DIN size panel version

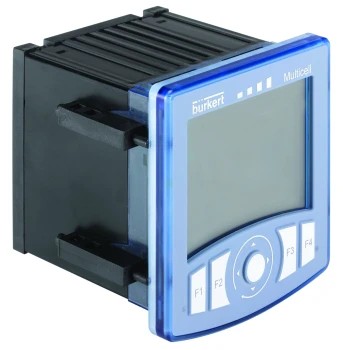

Display: LC graphic display, light blue backlit; 128x168 pixels resolution; German, English, French languages. Keypad: 4 soft keys [F1] [F2] [F3] [F4] for dynamic functions 1 central navigation key.
The mxCONTROL multifunction controller, is a microprocessor controller designed to automate the control of process variables within a water treatment system. Sophisticated electronics and state of the art control algorithms ensure that optimum process control is maintained at all times, with minimal operator intervention.
Enclosure Weatherproof grey epoxy coated steel plate. IP65 Dimensions 139 x 177 x 48mm Fixing Centres 102mm Electrical Entry 20mm conduit gland for cable diameter 7mm to 13mm Supply Voltage 24vDC Supply Load 11.7mA Volt Free Contacts Terminal (1&2) / (3&4) / (5&6) Contact resistive load 8 Amps Load Voltage (AC) 250vAC Load Voltage (DC) 30vDC Operating Temperature -25°C to +70°C Weight 0.6kg
Pre Filters available for removal of water and dirt particles up to 5 microns from air lines. Coalescing Filters available in 0.3 micron and 0.01 micron sizes for removal of 99.9% of oil mist. Operating pressure up to 150 psig. Port Size 1/4' - 1/2'.
316 Stainless Steel needle valve with 3mm or 6mm orifice. 316 Stainless Steel exhaust flow regulator/ breather supplied complete with tamper proof cap. 1/4', 3/8' 1/2' NPT and (BSP option).
