Temperature Transmitters

The SITRANS TO500 multipoint temperature transmitter is located in the control cabinet in a compact aluminum enclosure for mounting onto DIN rails. • Evaluation of a large number of sensors (Fiber Bragg Grating (FBG)) in one temperature transmitter • Low space requirements of the multipoint measuring lance • 4 multipoint measuring lance channels per temperature transmitter • Easy to install • PROFIBUS DP - Simple integration into control system • Fast response to temperature changes • Exact, no recalibration required due to internal reference • Also suitable for high process temperatures

Galvanically Isolated. Universal Input. Versions for Hazardous Areas. High Accuracy and Stability.

Input: Resistance thermometers, Thermocouples, Resistance-type sensors, DC sources, Current Sources. Output: 0/4 to 20 mA, HART or 0/2 to 10 V, HART.

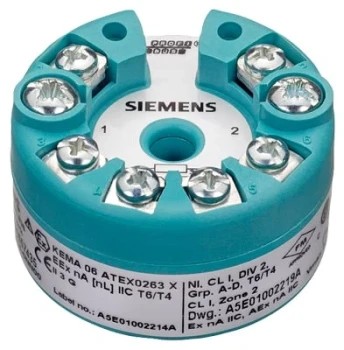

The TH100 offers economic plant operation and reliable measurements. It is an ideal substitute for over aged analogue PT100 transmitters. Setup is quick and easy with the transmitter-modem and SIPROM T. This configuration tool can be downloaded for free.

Push Button Programmable. Galvanically Isolated. Low Cost. 9 Standard Thermocouple Types.

SITRANS TH200 is designed to support all common RTDs, thermocouples, resistance and millivolt-sensors. Setup is quick and easy with the transmitter-modem and SIPROM T software. This configuration tool can be downloaded free. Unique user-friendly details are implemented: Without opening the 4-..20mA loop, the output current can read directly with a multimeter. A red/green LED shows the technician the status at a glance.

Input: Resistance thermometers, Thermocouples, Resistance-type sensors, DC sources. Output: 4 - 20 mA, HART. Alarm signal for sensor break or short-circuit according NAMUR 43. Electro magnetic compatibility (EMC) according DIN EN 61326 and NE21.

Duct Mounting. Rapid Response. Robust Construction. Output Options.

K, J, N, E, T, R, S THERMOCOUPLES PLUS mV. CONFIGURATION USING USB PORT POWERED. CONFIGURATOR. ISOLATED INPUT. OVER RANGE LED INDICATION. PROGRAMMABLE BURNOUT.

CONFIGURATION USING USB PORT POWERED CONFIGURATOR. PT100 or THERMOCOUPLE / mV. ISOLATED INPUT. INPUT LINEAR TO TEMPERATURE. (4 to 20) mA TWO WIRE OUTPUT. 10 YEAR WARRANTY.

CONFIGURABLE IN SECONDS. HIGH STABILITY. CONFIGURATION USING USB PORT POWERED. CONFIGURATOR. OVER RANGE LED INDICATION. PROGRAMMABLE BURNOUT. 10 YEAR WARRANTY.

SIMPLE CONFIGURATION VIA USB PORT. UNIVERSAL PT100, THERMOCOUPLE, mV, mA Input ISOLATED INPUT. PUSH BUTTON USER TRIM. (4 to 20) mA TWO WIRE OUTPUT. 10 YEAR WARRANTY.

HART Protocol. Universal Input. Sensor Burnout Detect. Din Rail Mounting.

HART Protocol. Universal Input. Sensor Burnout Detect. Isolation to 500VAC.

Push Button Calibration. RTD Sensor Input. In-Head Mounting. LED Over-Range Indication.

SIMPLE CONFIGURATION VIA USB PORT. ISOLATED PT100, THERMOCOUPLE INPUT. DISPLAY TEMPERATURE in °C /°F or OUTPUT DRIVE in mA. PUSH BUTTON USER TRIM. (4 to 20) mA TWO WIRE OUTPUT. HOUSING ABS PLASTIC OR STAINLESS STEEL. 10 YEAR WARRANTY.

SIMPLE CONFIGURATION VIA USB PORT. UNIVERSAL PT100, THERMOCOUPLE, mV, mA Input. ISOLATED INPUT. DUAL RELAY OUTPUTS 250 V AC 1A. RELAY ISOLATED FROM EACH OTHER. 10 YEAR WARRANTY.

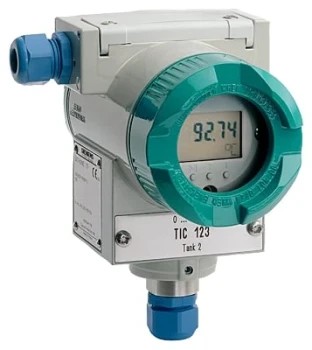

Input: Resistance thermometers, Thermocouples, Resistance-type sensors, DC sources. Output: PROFIBUS PA (variant), Foundation Fieldbus (variant). Explosion-protection. Electro magnetic compatibility (EMC) according DIN EN 61326 and NE21

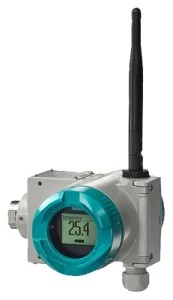

Input: Pt100 (IEC 60751). Output: WirelessHART radio in 2.4 GHz.

Input: Resistance thermometers, Thermocouples, Resistance-type sensors, DC sources. Output: 4 to 20 mA, 4....20 mA with HART, Profibus PA or Foundation Fieldbus.

Input: Resistance thermometers, Thermocouples, Resistance-type sensors, DC sources. Output: 4-20mA.

Input: Resistance thermometers, Thermocouples, Resistance-type sensors, DC sources. Output: 4-20mA.
