Fine Controls bring you a large range of Level Control equipment, including Level Transmitters, Switches, Controllers & Transducers.
The Type 8136 is a non-contact radar level transmitter for continuous level measurement. ThIS unit is available in two versions: One with encapsulated horn antenna which is particularly suitable for level measurement of aggressive liquids in small vessels. The other with a plastic horn antenna particularly suitable for flow measurement in open flumes or gauge measurement in waters.
The Type 8137 is a non-contact radar level transmitter for continuous level measurement. The unit is available in two versions: - with thread and horn antenna (ø 40 mm) particularly suitable for use in small tanks and process vessels for measurement of practically any product. Also with flange and horn antenna (ø 40 or 75 mm) particularly suitable for use in storage tanks and process vessels for measurement of products such as solvent, hydrocarbons and fuels under extremely difficult process conditions.
The Type 8138 is a non-contact radar level transmitter for continuous level measurement. It is particularly suitable for use in small vessels that contain beverage liquids under sanitary process conditions.
THIS PRODUCT IS NO LONGER AVAILABLE Range: 0.30 up to 7 meters, Accuracy
THIS PRODUCT IS NO LONGER AVAILABLE Pressure Range: 0.30 up to 10 metres, Accuracy: +/ 0.25% of full scale, Resolution: +/- 3mm, Supply Voltage: 18-32 VDC or 110-230AC, Medium temperature: -40 up to +80°C.
The Type 8177 is a non-contact ultrasonic level measuring device, designed for continuous level measurement in open or closed vessels. The unit is suitable for liquids, but also for solids, in virtually all industries, particularly in water and waste water management.
The Type 8188 is a level measurement device with cable, rod, both interchangeable probe or with coax probe, designed for continuous level measurement. The unit is suitable for liquids, for industrial use in all areas of process technology. With a measuring range up to 75 m, the 8188 is best suited for tall vessels. Even process conditions such as strong steam generation, density fluctuations or changes of the dielectric constant do not influence the accuracy of the measurement. Build-up or condensation on the probe or vessel wall do not influence the measuring result. A liquid interface measurement is also possible with the Type 8188, typically an oil/water interface.
The Type 8189 is a level measurement device with interchangeable rod probe, designed for continuous level measurement. The unit is suitable for liquids, for industrial use in all areas of process technology. the main application targets are in Food and Beverage (F&B) and pharmaceutical tanks to the new rod in stainless steel 1.4435 with Ra < 0.76 µm. For applications with corrosive liquids a PFA coated version is available.

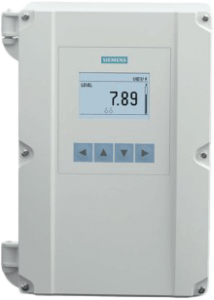

Display: LC graphic display, light blue backlit; 128x168 pixels resolution; German, English, French languages. Keypad: 4 soft keys [F1] [F2] [F3] [F4] for dynamic functions 1 central navigation key.
Single point, long-range level monitoring. Easy to install and program. Compatible with all Echomax transducers. Backlit display in standard engineering units. Auto level-to-volume conversion. Dolphin Plus and SmartLinx compatible
Narrow beam angle of only 10°, Chemically resistant PVDF copolymer enclosure and CSM rubber face, Measuring range: 8 m (26 ft) for measurement of liquids and slurries. Fully submersible: IP68 degree of protection.
Measuring range up to 12 meters. Safe or hazardous area duty. ETFE or PVDF wetted parts. 4-20mA or profibus output. Ultrasonic Level Transmitter.

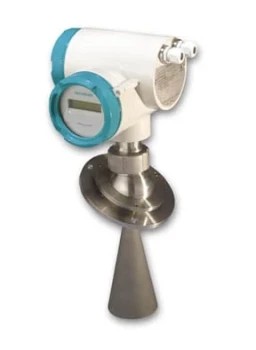

Temperature Max 200°C. Pressure Max 40 BAR. Range of 20 m (66 ft). Radar Level Transmitter.
Max pressure 64 BAR, Max temperature 250°C, Liquids and slurries, Vibrating Level Switch.
Integral temperature compensation, Low ringing effect reduces blanking distance, Optional foam facing for dusty applications, Self-cleaning and low maintenance, Chemically resistant, Hermetically sealed, Ultrasonic Level Transmitter.

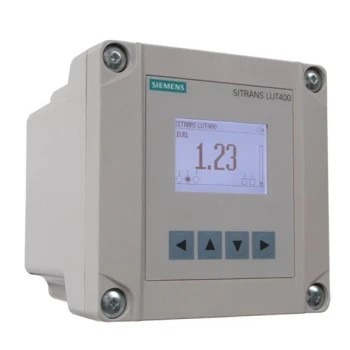

Monitors wet wells, weirs and flumes. Digital communications with built-in Modbus RTU via RS-485. Compatible with SmartLinx system and SIMATIC PDM configuration software. Single or dual point level monitoring. 6 relay (standard), 1or3 relay (opt.)
Outputs for alarms, chart recorders, controllers and integration of existing systems. Monitors wet wells, weirs and flumes. Energy-saving function with built-in real-time clock. Special control mode to reduce grease rings and other deposits.
Single/dual point level monitoring. False-Echo Suppression for fixed obstructions. Noise reduction and improved signal-to-noise ratio. Level, volume & flow measurements in open channels, differential control, extended pump control and alarm functions
Accuracy 2mm, Safe or hazardous area duty, Liquids, solids or slurries, Max temperature 100°C, Capacitance Level Switch.
Accuracy 1%, Safe or hazardous area duty, Liquids, solids or slurries, Max temperature 125°C, Capacitance Level Switch.
Standard version: 3 LED indicators for adjustment control, output status and power. Digital version: integral LCD display, and PROFIBUS PA communication. Push button calibration, full function diagnostics. Multiple output options. Capacitance Level Switch
2-wire loop powered with solid-state switch or 4 to 20/20 to 4 mA output. Simple push-button calibration and integrated local display. Full function diagnostics. HART communications for remote commissioning and inspection. Capacitance Level Switch
Measuring range 0.25-5 mt for liquids, Accuracy 3mm, Safe or hazardous area duty, Liquids, solids or slurries, Capacitance Level Switch.
4-20mA output. Accuracy 0.5% of measured valve. Max pressure 35 BAR. Max insertion length 10mt. Capacitance Level Transmitter.
4-20mA output. Accuracy 0.1% of measured valve. Max pressure 525 BAR. Max insertion length 35mt. Capacitance Level Transmitter.
The SITRANS LG series comes in four different models: LG240, LG250, LG260 & LG270 Technology: Guided wave radar Range: 300 - 75 000 mm Process Temp: -196 - +450C Vessel Pressure: -1 - +400 bar
Max pressure 10 BAR Max temperature 220°C Powders and granular solids Stainless steel wetted parts Rotary Paddle Level Switch
4-20mA output. Measuring range 0.3-20 mt. Hart or profibus communication. Safe or hazardous area duty. Radar Level Transmitter.
