Temperature Measurement

Filter Products Close Filters

Temperature measurement – Our extensive range of temperature measuring devices offer all you need for the perfect solution to all your temperature monitoring requirements. We have a wide selection of temperature probes, thermowells, transmitter heads and transmitters. Whether it be in-head, DIN rail or industrial temperature transmitters we have a wide range to suit your application.

If you are looking for high accuracy, robust and reliable we have got you covered offering from our Siemens or Status range.

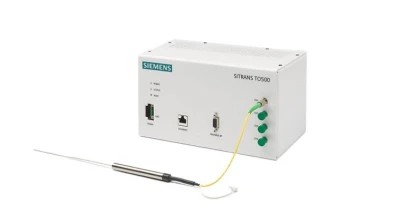

SIEMENS SITRANS TO500 multipoint temperature transmitter Model Number: T0500

The SITRANS TO500 multipoint temperature transmitter is located in the control cabinet in a compact aluminum enclosure for mounting onto DIN rails. • Evaluation of a large number of sensors (Fiber Bragg Grating (FBG)) in one temperature transmitter • Low space requirements of the multipoint measuring lance • 4 multipoint measuring lance channels per temperature transmitter • Easy to install • PROFIBUS DP - Simple integration into control system • Fast response to temperature changes • Exact, no recalibration required due to internal reference • Also suitable for high process temperatures

STATUS INSTRUMENTS SCH4 - CONNECTION TERMINATION HEAD Model Number: SCH4

Multi entry. Houses One or Two Transmitters. Sealed to IP67. Digital Display Option.

STATUS INSTRUMENTS STYLE 2 - TEMPERATURE PROBE / SENSOR Model Number: STYLE 2

6mm dia. st/st sheath x 75, 100, 150, 200, 250mm immersion. 3 wire Pt100 class B. For use with a compression fitting.

STATUS INSTRUMENTS STYLE 9 - TEMPERATURE PROBE / SENSOR Model Number: STYLE 9

6mm dia. s/s sheath x 75, 100, 150,200,250mm immersion. 3 wire Pt100 class B.

STATUS INSTRUMENTS DM640 - BATTERY POWERED THERMOMETER Model Number: DM640

Suitable For Use With Pt100 or Thermocouple Temperature Probes. Push button configurable. Sensor, Remote or Wall Mounted versions. 4 digit display. Sealed to IP67. Atex approved in ABS housing.

STATUS INSTRUMENTS DM660 - BATTERY POWERED THERMOMETER Model Number: DM660

Suitable for Pt100,Ni100,Cu53,Cu100 temperature sensors. 20 mm LCD Display for good readability. Sensor, Wall or Panel Mount Housing Options. Stainless Steel Construction (100mm diameter). IP65 Enclosure.

STATUS INSTRUMENTS SPP2640P - TEMPERATURE PROBE WITH BATTERY POWERED DISPLAY Model Number: SPP2640P

4 digit LCD display of temperature. Battery powered. Flexible immersion length. 6mm sensor diameter. Temperature range - 50/200 Deg C at tip.

STATUS INSTRUMENTS STYLE 10 - TEMPERATURE PROBE / SENSOR Model Number: STYLE 10

6mm dia. s/s sheath x 75, 100, 150,200,250mm immersion. 3 wire Pt100 class B. 3/4'bsp process connection, (parallel male running nut). 12.7mm x 75mm extension.

STATUS INSTRUMENTS STYLE 11 - TEMPERATURE PROBE / SENSOR Model Number: STYLE 11

6mm dia. s/s sheath x 75, 100, 150,200,250mm immersion. 3 wire Pt100 class B. 3/4'bsp process connection, (parallel female running nut). 12.7mm x 75mm extension.

STATUS INSTRUMENTS STYLE 8 - TEMPERATURE PROBE / SENSOR Model Number: STYLE 8

12.7mm dia. x 200mm long st/st sheath. 3 wire Pt100 class B. Flexible PVC sheath over cable, 3 wire 7/0.2 Cu PTFE. insulation, 1 metre long.

STATUS INSTRUMENTS STYLE 7 - TEMPERATURE PROBE / SENSOR Model Number: STYLE 7

12.7mm dia. x 50mm long st/st sheath. 3 wire Pt100 class B.

STATUS INSTRUMENTS STYLE 3 - TEMPERATURE PROBE / SENSOR Model Number: STYLE 3

7.9mm dia. st/st sheath x 75, 100, 150, 200,250mm immersion 3 wire Pt100 class B.

STATUS INSTRUMENTS STYLE 4 - TEMPERATURE PROBE / SENSOR Model Number: STYLE 4

6mm dia. st/st sheath, x 75, 100, 150, 200, 250mm immersion. 3 wire Pt100 class B. PTFE 7/0.2 Cu insulated cable (1 metre).

STATUS INSTRUMENTS STYLE 6 - TEMPERATURE PROBE / SENSOR Model Number: STYLE 6

6mm dia. st/st sheath x 50, 150, 305mm immersion. 3 wire Pt100 class B. 50mm, 150mm or 305mm immersion.

Showing 1 to 17 of 17 (1 Pages)
Can't find the right part? We have 1000's more products in stock
