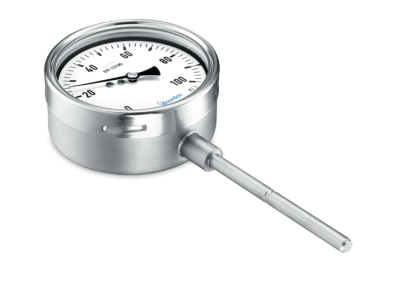

BOURDON TSS160 - GAS FILLED THERMOMETER

Bourdon

Model Number: TSS160

Protection rating (EN 60529): IP65
Dial: White, Aluminium
Pointer: Black, Aluminium
Window material: Instrument glass
Window gasket: Elastomer
Movement material: Brass
Nominal size: 160 mm
Case material: Stainless steel 1.4301 / AISI 304
Bezel ring material: Stainless steel 1.4301 / AISI 304
Temperature range: -200°C ... +800°C
Temperature limitation: 130 % FS
Wetted parts: Immersion tube material Stainless steel 1.4541 / AISI 321
Performance: Accuracy according to EN 13190 Class 1
Electrical data: ATEX Ex II 2 GDc
