Stainless Steel Solenoid Valves
Showcasing the very best in technical instrumentation from Burkert and Midland, you'll find components suitable for a vast range of port sizes, pressure ranges, directional functions and voltages - many of which come with a choice of seal materials to ensure they meet the tough demands of the task in hand.
Port Connection: G 1/4, G 3/8, G 1/2. Body Material: Stainless steel, brass and stainless steel, nickel-plated. Seal Material: PEEK/FKM; PCTFE/FKM; PTFE/FKM. Max Pressure: 250 Bar. For high pressures. servo-assisted
Port Connection: G1/8, G1/4, G3/8, sub-base Body Material: Brass & Stainless Steel Seal Material: FKM, PTFE/Graphite & EPDM Pressure: 0 - 25 Bar Media temprature ranges covering '"10°C + 180°C
Port size 1/4'. Pressure range 0-10 bar. Temperature media -10°C to + 90°C. Body material Brass, stainless steel. Seal material FPM, EPDM or Buna.
A ball seated version of the DN2 hydraulic control valve, the st/st seat and ceramic ball design ensures a leak tight shut off. The DN2 valve design incorporates a balanced internal piloting system and lever mechanism.
Port size 1/4" - 2" Pressure range 0-10 bar, Temperature media ranges covering -30°C to +120°C Body material Brass or Stainless Steel, Seal material NBR, FKM, EPDM Options - Explosion protection Ex to Eurostandard.
Pressure range 0.2 - 10 bar Port Connections Threaded port G1/2' - G21/2' Operating voltages 24, 110, 230 V/UC Duty cycle 100% continuously rated Rating IP65 Approvals: EEx m II T4 with moulded cable & EEx me II T4 with terminal box

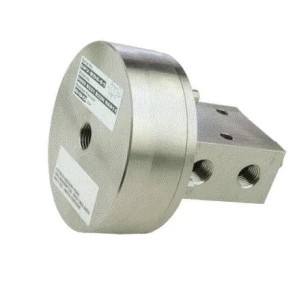

The fully st/st DN5 Pilot and Mainstage use cartridge insert technology to simplify replacement and reduce downtime costs. Features include 'O' Ring interfaces for subplate fitting or a manifold mount for use with actuators and wellhead applications.

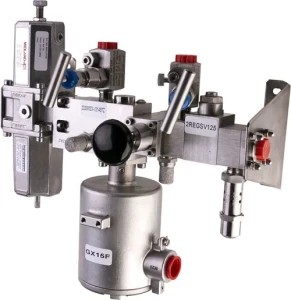

IMPACT range is a high integrity modular pneumatic actuator control assembly system in 316 Stainless Steel, used for the control and sequencing of process valve actuators on oil and gas facilities and pipelines.

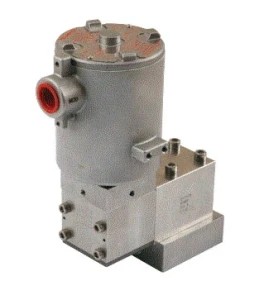

IECEX compliant version of the DN5 series metal to metal seated hydraulic control valve. St/st design ensures leak tight shut off, incorporating a balanced internal piloting system enabling the solenoid coil to switch the valve at high pressures.
St/St seat and ceramic ball design ensure a leak tight shut off and a balanced internal piloting system and lever mechanism to enable low powered operators to switch the valve at high pressures.
Piston operator and ball seated design, ensures leak tight shut off and positive control. Can be supplied with a range of operators, for varied pressures & ambient temperatures, and be in-line mounted or subplate/multi-station manifold mounted.
High flow. Hazardous area solenoids. Coil with 316 housing. Atex Certification. CENELEC - UL approvals. 1/4' NPT and (BSP). Low temperature range.
Hazardous area solenoids. Coil with 316 or aluminium housing. Block before bleed. 1/2'NPT (BSP option available). Atex Certification
Orifice Size: DN13 - DN50 Body Material: Brass or Stainless Steel on request Seal Material: NBR, EPDM, FKM Media Temperature: Up to 120C WRAS Approved Materials
Port size 1/2' - 2', Pressure range 0.2-16 bar, Temperature media -10°C to +90C, Body material Brass, Seal material NBR, Options - Manual override & Explosion Protection Ex to Eurostandard.
Pressure 0.2 - 10 bar, Ports G1/2' - G21/2', Orifice DN 13 to 65 mm, Voltages 24, 110, 230 V/UC, Duty cycle 100% continuously rated, IP65, EEx m II T4 with moulded cable & EEx me II T4 with terminal box.

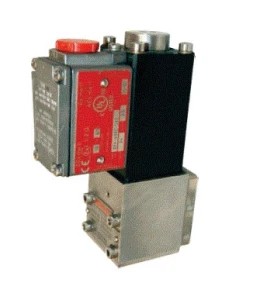

This version of the DN2 series features the new Cartridge Insert System, alternative to conventional ball-seated type internals. The one-piece Poppet Cartridge Insert System simplifies replacement and reduces repair costs.
Pressure Range: 0.2-10 bar, max, Body material: Brass or St/St, Seal material: NBR, EPDM or Viton fluoroelastomers, Separating diaphragm isolates solenoid from operating fluid Lockable manual override as standard.

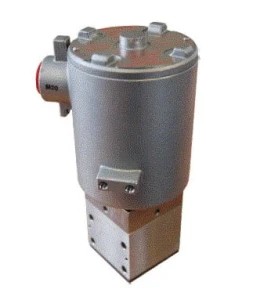

An IECEX compliant DN2 series cartridge insert hydraulic control valve. St/St design ensures leak tight shut off and incorporates a balanced internal piloting system to enable the low powered coil to switch the valve at high pressures.
Port size 1/4" - 2" Pressure range 0-10 bar, Temperature media ranges covering -30°C to +120°C Body material Brass or Stainless Steel, Seal material NBR, FKM, EPDM Options - Explosion protection Ex to Eurostandard.The standard brass housing satisfies all European drinking water requirements, WRAS Approved Materials on request
Further information on each of the solenoids can be gleaned from the downloadable TechSpecs and manufacturers manuals, whilst our experts are always on hand to discuss your enquiries. Simply give us a call on +44 (0) 800 328 8511, or fill out the online form.
