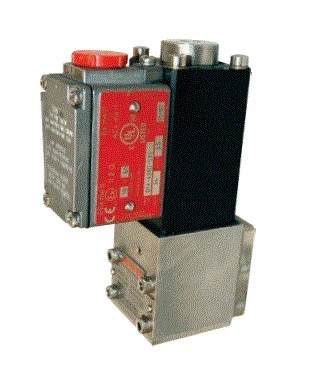

Midland Acs Dn2 Series - Hydraulic Solenoid Pilot Valve With Cartridge Insert System

Model Number: DN2

This version of the DN2 HYDRAULIC SOLENOID PILOT VALVE series incorporates the new Cartridge Insert System, which replaces the conventional ball-seated type internals, typically characterised by small individual components and require a certain level of expertise and a suitably clean environment in which to carry out their replacement. The new one-piece Poppet Cartridge Insert System simplifies replacement and considerably reduces repair costs.

  • Materials of Construction: Valve bodies and sub-plates 316L Stainless Steel; Wetted parts, various grades of stainless steel/ ceramic; Fasteners, A4, grade 80 stainless steel; Springs, stainless steel
  • Filtration: Recommended 10 micron absolute
  • Ingress Protection: IP66/NEMA 4X
  • Operating pressure range: 0 to 690 bar depending on operator type
  • Fluid Media: Suitable for use with Mineral Oils, Water Glycols and Synthetic fluids
  • Ambient temperature range: Standard -20C to + 60C; Low temp -50C to + 60C
