Valves

Filter Products Close Filters

Fine Controls selection of Valves includes a comprehensive range of Process Valves and Solenoid Valves, manufactured by the biggest and best names in the industry, including Alcon and Burkert

Whether you require general purpose valves, or valves manufactured specifically for specialist applications, installations or environments, we’re confident we’ll have the product for you.

ALCON 31/32/33 SERIES - GENERAL PURPOSE 3/2 WAY SOLENOID VALVE Model Number: 31 32 33

Direct acting, 3way Normally close, Open, Diverter or Mixing Functions , EExed & EExem Options, Maximum Temperature 180

ALCON FACHL SERIES - MANUAL RESET SOLENOID VALVE Model Number: FACHL

Brass body with Buna seals, Sizes 3/8' -10', Manual lever reset-able, Direct acting.

ALCON GB SERIES - STANDARD GAS APPROVED SOLENOID VALVE Model Number: GB

Approved to EN161, Aluminium Body, Direct acting, High flow design.

ALCON HWA SERIES - GAS APPROVED SOLENOID VALVE Model Number: HWA

Approved to EN161, Aluminium Body, Direct acting, 11/4' -6' port connections.

ALCON NAMUR SERIES - NAMUR MOUNT SOLENOID VALVE Model Number: NAMUR

3/2 & 5/2 Functions, Competitively priced, Options for EExed, Alcon Dual Solenoid coil option.

ALCON SOLENOID COILS Model Number: COIL

Alcon offer a range of Solenoid coils for general purpose applications. Standard versions and Hazardous versions available. Which can be supplied fitted to most valves with in the Alcon range.

BURKERT 6213 - 2/2 BRASS or STAINLESS STEEL VALVE NORMALLY CLOSED WATERHAMMER Model Number: 6213

Port size 1/4" - 2" Pressure range 0-10 bar, Temperature media ranges covering -30°C to +120°C Body material Brass or Stainless Steel, Seal material NBR, FKM, EPDM Options - Explosion protection Ex to Eurostandard.

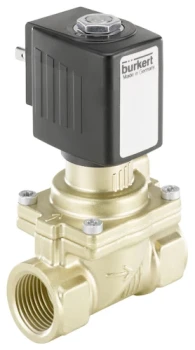

BURKERT 6281 - 2/2 SERVO ASSISTED BRASS or STAINLESS STEEL VALVE Model Number: 6281

Orifice Size: DN13 - DN50 Body Material: Brass or Stainless Steel on request Seal Material: NBR, EPDM, FKM Media Temperature: Up to 120C

BURKERT 5282 EEx d - 2/2 BRASS or STAINLESS STEEL HAZARDOUS AREA SOLENOID VALVE Model Number: 5282 EEx d

Pressure 0.2 - 10 bar, Ports G1/2' - G21/2', Orifice DN 13 to 65 mm, Voltages 24, 110, 230 V/UC, Duty cycle 100% continuously rated, IP65, EEx m II T4 with moulded cable & EEx me II T4 with terminal box.

BURKERT BANJO PILOT VALVES Model Number: BANJO

Pressure range 0-10 bar, Temperature media -10°C to +/- 100°C, Banjo bolt Brass, nickel plated, Seal material FPM.

BURKERT TYPE 2000 - 2/2 WAY PISTON ANGLE SEAT VALVE NORMALLY CLOSED Model Number: 2000

Port size 1/2' - 2 1/2', Pressure range 0-16 bar, Temperature media -10-°C to +180°C, Body material Gunmetal, Stainless Steel, Options: Double-acting actuator, Weld-end connection, Electrical position feedback & Manual override.

BURKERT TYPE 2002 - 3/2 WAY PISTON VALVE COMPACT VALVE Model Number: 2002

Port Connection: G 1/2, G 3/4, G 1, G 1 1/4, G 1 1/2, G 2 Body Material: Gunmetal Seal Material: PTFE Max Pressure: 16 Bar Maximum Temperature 180°C Multi function

BURKERT TYPE 2012 - 2/2 WAY FLANGED GLOBE PROCESS VALVE Model Number: 2012

Port Connection: Flange. Body Material: Cast stainless steel 316L. Seal Material: PTFE (NBR, FKM and EPDM on request). Max Pressure: 16 Bar. Compact globe valve version. Available with flow direction below and above seat.

BURKERT TYPE 2012 - 2/2 WAY GLOBE PROCESS VALVE Model Number: 2012

Port Connection: Flange, Body Material: Cast stainless steel 316L, Seal Material: PTFE (NBR, FKM and EPDM on request), Max Pressure: 16 Bar, Max temperature 180°C.

BURKERT TYPE 2030 - 2/2 WAY PLASTIC BODIED DIAPHRAGM VALVE Model Number: 2030

DN15 to DN100. Body: PVC-U, PP, PVDF. Seals: EPDM, PTFE/EPDM. Max P: 10 Bar. Applications with aggressive media. Flow-optimised body with zero dead volume. Self-draining installation possible.

BURKERT TYPE 2031 - 2/2 WAY PROCESS VALVE NORMALLY CLOSED Model Number: 2031

Port size 1/4' - 2', Pressure range 0-10 bar, Temperature media -10°C to +140°C, Body material Stainless steel.

BURKERT TYPE 2100 - ANGLE SEAT CONTROL VALVE WITH ON/OFF CONTROL Model Number: 2100

2/2-way Angle-Seat Valve with stainless steel design for media up to +185

BURKERT TYPE 2200 - 2/2 WAY HIGH PRESSURE SOLENOID VALVE Model Number: 2200

Port Connection: G 1/4. Body Material: Stainless steel 1.4401. Seal Material: Stainless steel/PCTFE. Max Pressure: 250 Bar. Direct-acting, normally closed and normally open. Electrical connection cable plug Form A. Also available with ATEX approval.

BURKERT TYPE 2300 - ANGLE SEAT CONTROL VALVE Model Number: 2300

2/2-way Angle-Seat Control Valve with stainless steel design for media up to +185

BURKERT TYPE 2301 - GLOBE CONTROL VALVE Model Number: 2301

2/2-way Globe Control Valve with stainless steel design for media up to +185

BURKERT TYPE 2400 - 2/2 WAY SERVO-ASSISTED SOLENOID VALVE Model Number: 2400

Port Connection: G 1/4, G 3/8, G 1/2. Body Material: Stainless steel, brass and stainless steel, nickel-plated. Seal Material: PEEK/FKM; PCTFE/FKM; PTFE/FKM. Max Pressure: 250 Bar. For high pressures. servo-assisted

BURKERT TYPE 255 - 2/2 WAY SOLENOID VALVE Model Number: 255

Port Connection: G 1/4, G 3/8, G 1/2. Body Material: Brass with stainless steel seat 1.4305 or stainless steel body 1.4581. Seal Material: FKM, PTFE (others on request). Max Pressure: 100 Bar. Maximum Temperature 180°C.

BURKERT TYPE 2651 - QUARTER TURN BALL VALVE Model Number: 2651

Port Connection: G 1/2 - G 4 Body Material: Stainless steel 1.4401; Nickel-plated brass Seal Material: PTFE Max. Pressure: 100 Ba

BURKERT TYPE 2654 - QUARTER TURN BALL VALVE Model Number: 2654

Port Connection: G 1/2 - G 4 Body Material: Stainless steel 1.4401; Nickel-plated brass Seal Material: PTFE Max. Pressure: 100 Bar

BURKERT TYPE 2702 - CONTROL VALVE Model Number: 2702

Input: 4-20mA, 0-20mA & 0-10V. Maximum operating pressure 16 bar. Body Stainless steel . Plug/stem Stainless steel. Integrated, cascaded process controller with parameter definable PID-algorithm. LCD/key pad,menu-guided program & code-protection.

BURKERT TYPE 2712 - MODULATING CONTROL VALVE Model Number: 2712

DN4 - DN100, CV0.5 - CV140, Max temp 180, 4-20mA, 0-10vdc, PT100 or Pulse input, Low Cost with High Performance.

BURKERT TYPE 2824 - DIRECT ACTING LOW FLOW PROPORTIONAL CONTROL VALVE Model Number: 2824

THIS PRODUCT IS NO LONGER AVAILABLE Low Flow, 0-12 bar, DN 0.8 - 2.0 mm, 1/8' or sub-base version.

BURKERT TYPE 2833 - GENERAL PURPOSE PROPORTIONAL SOLENOID CONTROL VALVE Model Number: 2833

0-16bar, DN 0.8 - 4 mm, 1/8', 1/4' or sub-base, EEX approvals optional, Brass or ST/ST bodies.

BURKERT TYPE 2835 - 2/2 WAY PROPORTIONAL SOLENOID VALVE Model Number: 2835

High sensitivity. 0 to 25 bar. DN 2 to 8 mm. G 3/8 and G

BURKERT TYPE 3233 - DIAPHRAGM VALVE MANUALLY OPERATED Model Number: 3233

Pressure range: 0-10 bar, Temperature media: -10°C +130°C, Body material: Stainless Steel 1.4404, Zero dead volume, Corrosion resistant.

Showing 1 to 30 of 117 (4 Pages)

We stock valves specially built for handling a range of requirements, whether you require valves for high pressure, hazardous areas or heavy duty industrial installations.

We also stock a range of Valve Positioners.

We’ve a number of valves available for purchase directly through our website, though our entire stock range eclipses what we’re able to list here.

If you can’t find the Valve you need and want to see if we have it in stock, or want some guidance on which valves to buy, contact our friendly team who’ll be happy to help get you the products you need.
