Pilot Solenoid Valves
Pilot operated valves are the most widely used solenoid valves, and use system line pressure to open and close the main orifice in the valve body.
Our comprehensive range features over a dozen components from industry leaders Alcon and Burkert, and includes features comprising dual coil options, manual overrides, multipole terminals, banjo connections and explosion-proof valves amongst others..
And with a selection of port size connections, body materials, pressure ranges, seal materials, voltages and directional functions to choose from, there’s a solenoid product to cater to every task.

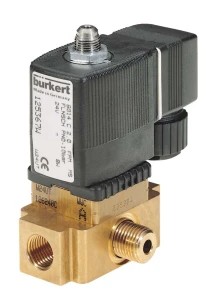

Pressure 0-16bar Ports DN1.5-DN2.0. Seals FPM. Body Polyamide/brass. Seal FPM(Viton). Electrical con. With cable/terminal box. Neutral gases. Voltage 24, 110, and 230 V/UC. Duty cycle 100% continuous rated. EEx-m-II T4 / T6 and EEx-me-II T4/T6.

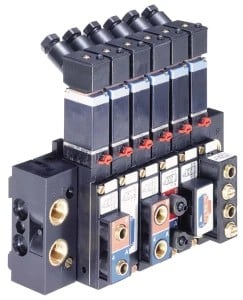

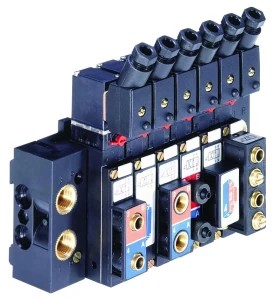

Pressure range 2-8 bar Ports G1/8 & 6mm push in DN 13 up to 65 mm Body Polyamide Ambient temp -10 up to +50 °C 24 VDC Duty cycle 100% continuously rated IP65 ATEX EExia IIC T6
Electrical 3mt moulded cable or terminal box. Port connections Threaded port

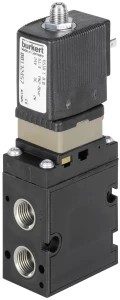

DN 8 & 9 Ports 1/4' BSP or NPT. Body Polyamide. Seals- NBR, NBR and PUR. Electrical connection With cable (3m length). Volts 24, 110, & 230 V/UC. Duty cycle 100% continuously rated. IP65. II 2G EEx m II T 5 PTB 00 ATEX 2129X II 2DIP 65T 100°C.
Port size 1/8' - 1/4' Pressure range 0-10 bar Body material Brass or PA Seal material FKM
Port connection 1/4', Pressure range 2-8, Media temperature -10 up to 50°C, Pilot operated.

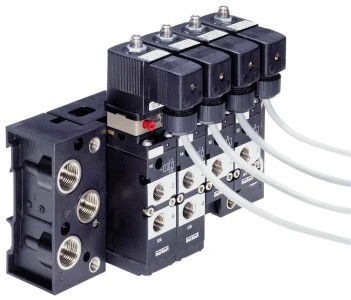

Pressure: 0-10 bar max. Tech vacuum. Ports G1/8, G 1/4 and Sub-base connection. From -30 up to +40°C. Volts 24, 110, 230 V/UC. Duty cycle 100% continuously rated. IP 65. EEx-m-II T4, T5 and T6 or EEx-me-II T4, T5 and T6.
If you’re unsure about the suitability of a particular valve, be it for fluid neutral gas, compressed air, water, hydraulic oil or technical vacuum usage, don’t hesitate to contact one of our trained engineers on +44 (0) 800 328 8511.
Further information is also available via our downloadable manuals and TechSpecs, which you’ll find within the product description of all our solenoids.
