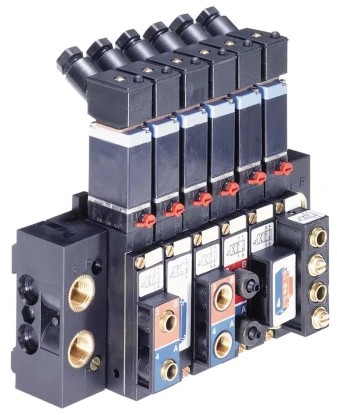

Burkert Type 5470 Eex Ia - Manifold Mount Hazardous Area Solenoid Valve

Model Number: 5470 EEx ia

The Burkert Type 5470 EEx ia is an intrinsically safe solenoid valve, EExia 2 CT6 is supplied as a manifold mountable valve which allows for up to 22 valves to be mounted on a manifold. This rocker principle solenoid valve offers high performance and long life service making it ideal for high cycling applications. With manual override as standard and the option for either threaded or 6mm push-in connections, this valve series offers a very versatile option when looking for ATEX intrinsically safe certified valves in either 4/2 or 3/2 functions.

The applications the Type 5470 is available includes:

  • Chemical Industry
  • Pharmaceutical processing equipment
  • Industrial wastewater treatment
  • Oil and Gas Industry

Features and Benefits of the Burkert Type 5470 EExia:

  • Pressure range 2-8 bar max
  • Port connections G 1/8 and 6mm push in
  • Orifice DN 13 up to 65 mm
  • Body materials Polyamide
  • Max. ambient temp Single valve T6 -10 up to +50 °C
  • Operating voltages 24 VDC
  • Duty cycle 100% continuously rated
  • Rating IP65
  • Approvals ATEX EExia IIC T6

BURKERT TYPE 5470 180695 3/2 EExiaIIcT6

£115.00 (ex VAT)

£138.00 (inc VAT)
