Pilot Operated Regulators

Filter Products Close Filters

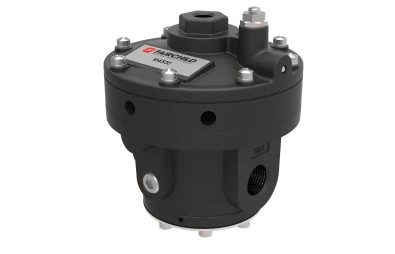

FAIRCHILD MODEL 4500A - PNEUMATIC VOLUME BOOSTER Model Number: 4500A

Maximum Output Pressure 150 psig. Maximum Supply Pressure 250 psig. Flow Capacity 150 SCFM @ 100 psig supply SCFM, 20 psig set point. Ratio 1:1 to 3:1. Pipe size 3/8 NPT - 3/4 NPT.

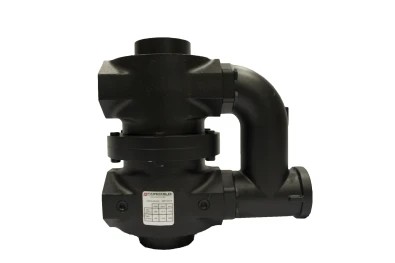

FAIRCHILD MODEL 200XLR - VOLUME BOOSTER Model Number: 200XLR

Supply Pressure 250 psig Maximum. Output pressure 150 psig Maximum. Sensitivity 1' Water Column. Pipe size 1 1/2' NPT.

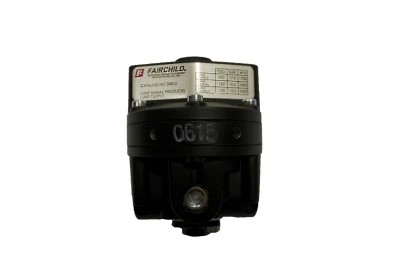

FAIRCHILD MODEL 20 - VOLUME BOOSTER Model Number: 20

Maximum Output Pressure 150 psig. Maximum Supply Pressure 250 psig. Flow Capacity SCFM @ 100 psig supply 45, 20 psig output. Sensitivity 1/4' Water Column. Pipe size 1/4' NPT - 3/8' NPT/BSPT.

SIEMENS MOORE 61 Series - PNEUMATIC VOLUME BOOSTER Model Number: 61

Maximum Output Pressure 3-15psig. Maximum Supply Pressure 100 psig. Flow Capacity 10 SCFM Ratio 1:1 Pipe size 1/4 "

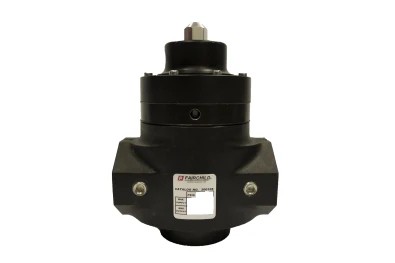

FAIRCHILD MODEL 200 - VOLUME BOOSTER Model Number: 200

Supply Pressure 250 psig Maximum. Output Pressure 150 psig Maximum. Flow Capacity (SCFM) 830 @100 psig, 20 set point. Sensitivity 1' Water Column. Pipe Size 1' NPT - 1 1/2' NPT.

Showing 1 to 5 of 5 (1 Pages)
