In-Head Temperature Transmitters

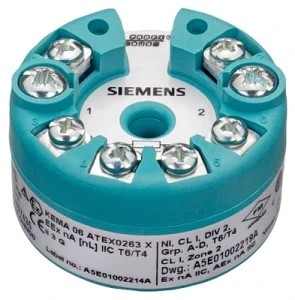

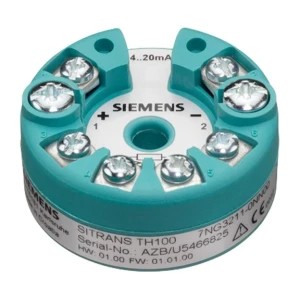

The TH100 offers economic plant operation and reliable measurements. It is an ideal substitute for over aged analogue PT100 transmitters. Setup is quick and easy with the transmitter-modem and SIPROM T. This configuration tool can be downloaded for free.

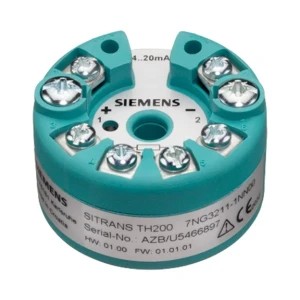

SITRANS TH200 is designed to support all common RTDs, thermocouples, resistance and millivolt-sensors. Setup is quick and easy with the transmitter-modem and SIPROM T software. This configuration tool can be downloaded free. Unique user-friendly details are implemented: Without opening the 4-..20mA loop, the output current can read directly with a multimeter. A red/green LED shows the technician the status at a glance.
Input: Resistance thermometers, Thermocouples, Resistance-type sensors, DC sources. Output: 4 - 20 mA, HART. Alarm signal for sensor break or short-circuit according NAMUR 43. Electro magnetic compatibility (EMC) according DIN EN 61326 and NE21.
Input: Resistance thermometers, Thermocouples, Resistance-type sensors, DC sources. Output: PROFIBUS PA (variant), Foundation Fieldbus (variant). Explosion-protection. Electro magnetic compatibility (EMC) according DIN EN 61326 and NE21
Push Button Calibration. RTD Sensor Input. In-Head Mounting. LED Over-Range Indication.
Push Button Programmable. Galvanically Isolated. Low Cost. 9 Standard Thermocouple Types.
Galvanically Isolated. Universal Input. Versions for Hazardous Areas. High Accuracy and Stability.
HART Protocol. Universal Input. Sensor Burnout Detect. Isolation to 500VAC.
SIMPLE CONFIGURATION VIA USB PORT. ISOLATED PT100, THERMOCOUPLE INPUT. DISPLAY TEMPERATURE in °C /°F or OUTPUT DRIVE in mA. PUSH BUTTON USER TRIM. (4 to 20) mA TWO WIRE OUTPUT. HOUSING ABS PLASTIC OR STAINLESS STEEL. 10 YEAR WARRANTY.
