Pneumatic Solenoid Valves
With a choice of port sizes, functional routes, pressure ranges, seal materials and voltages, you can take your pick from our latest range of Pneumatic Solenoid Valves.
Manufactured to precision by the experts at Burkert and Alcon, each component has been engineered to the highest technical specifications using state-of-the-art technologies, offering ideal solutions for the mixing, diverting and venting applications of both neutral gases and liquids.
Priced competitively, all of our Solenoids are available with downloadable manuals and TechSpecs, and will be despatched on Next Day Delivery when ordered before 2pm.

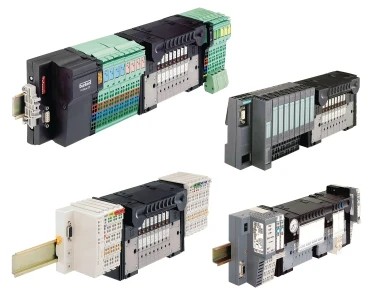

Fully compatible with Rockwell Point I/O System, Combination of Fieldbus, pilot valves and I/O modules, Compact design, High flow rate Fully compatible with Rockwell Point I/O System, Combination Fieldbus, pilot valves and I/O modules, High flow rate
Port connection 1/4', Pressure range 2-8, Media temperature -10 up to 50°C, Pilot operated.
Pressure Range: 0-10 bar, max. Temperature media: -10°C to +100°C, Body material: Brass or St/St, Seal material: FPM.
Pressure: 0-10 bar max. Tech vacuum. Ports G1/8, G 1/4 and Sub-base connection. From -30 up to +40°C. Volts 24, 110, 230 V/UC. Duty cycle 100% continuously rated. IP 65. EEx-m-II T4, T5 and T6 or EEx-me-II T4, T5 and T6.
Press. 0 - 10 bar & Vaccum Ports G1/8' - G1/4', Voltage: 24, 110, 230 V/UC Duty cycle 100% continuously rated IP65 EEx m II T4 with moulded cable & EEx me II T4 with terminal box
Pressure range 2-8 bar Ports G1/8 & 6mm push in DN 13 up to 65 mm Body Polyamide Ambient temp -10 up to +50 °C 24 VDC Duty cycle 100% continuously rated IP65 ATEX EExia IIC T6
Electrical 3mt moulded cable or terminal box. Port connections Threaded port

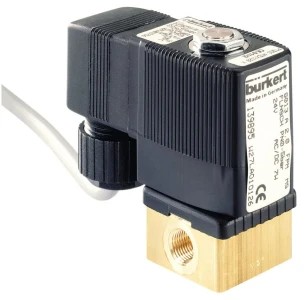

DN 8 & 9 Ports 1/4' BSP or NPT. Body Polyamide. Seals- NBR, NBR and PUR. Electrical connection With cable (3m length). Volts 24, 110, & 230 V/UC. Duty cycle 100% continuously rated. IP65. II 2G EEx m II T 5 PTB 00 ATEX 2129X II 2DIP 65T 100°C.
Port Connection: G1/8, G1/4, G3/8, sub-base Body Material: Brass & Stainless Steel Seal Material: FKM, PTFE/Graphite & EPDM Pressure: 0 - 25 Bar Media temprature ranges covering '"10°C + 180°C
Fully compatible with Phoenix Inline System, Combination of Fieldbus, pilot valves and I/O modules, High flexibility, Compact design, High flow rate.
Port size 1/4'. Pressure range 0-10 bar. Temperature media -10°C to + 90°C. Body material Brass, stainless steel. Seal material FPM, EPDM or Buna.
Port Connection: Flange, Body Material: Brass and stainless steel 1.4401, Seal Material: NBR, FKM (EPDM on request), Max Pressure: 16 Bar, Manifold Mounted, Manual Overide, Electrical feed back option.
Compact Size, Brass or st/st, Manual Override , 1/8 or sub base mounted, 0-10bar.
Port size 1/8' - 1/4' Pressure range 0-10 bar Body material Brass or PA Seal material FKM
