Power Supplies & Trip Amps

■ Power supplies 24 V/0.6 A, 1.3 A, 2.5 A and 4 A 12 V/2.0 A and 6.5 A ■ Small mounting surface thanks to slimline design ■ Low energy consumption ■ Minimum energy losses in no-load operation ■ Connection via plug-in terminals ■ input 85... 264 V AC for 120 V and 230 V AC single-phase networks without changeover ■ Operation on 110 to 300 V DC networks ■ Adjustable output voltage ■ Operating temperature –20 to +70 °C ■ International package of standards

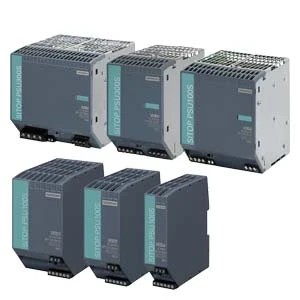

SITOP smart is the high-performance standard power supply for automated machinery and plants with 24 V DC or 12 V DC electronics.

90 to 240V AC Supply Voltage 24VDC @ 1 Amp Output Can Power Up To 40 2 wire 4 to 20mA Loop Powered transmitters UL, CE and CSA approved Isolated to 3 kV

Smart Configurable. Single or Dual Channel. Galvanic Isolation. Universal or Frequency Input. Easily customised Via TFML.

Small Size. Universal Input Supply. High Packing Density. Cool Running.

2 x Mains rated relays (SEM1402) 1 x Main rated relay (SEM1401) Loop Powered Trip State LED Indication Active High or Low
