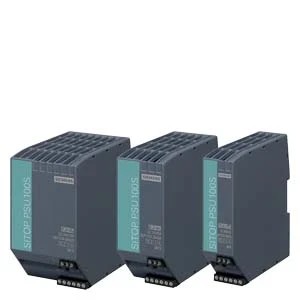

Siemens Sitop Psu100C - Compact Power Supply

Model Number: PSU100C

The SITOP PSU100C stabilized power supplies of the SITOP compact product line for the low-end performance range have an extremely slimline design that marks them out for distributed applications, e.g. installation in control boxes or small control cabinets.

With a width of just 22.5 to 52.5 mm, the power supply units require up to 1/3 less space on the mounting rail than comparable devices. Another convincing feature of these 12 V and 24 V power supplies is their high efficiency across the entire load range. And because the power losses are also extremely low, even in no-load operation, users save up to 35% of energy. The wide-range input enables problem-free connection to single-phase AC networks as well as to DC networks. The plug-in terminals also ensure user-friendly connection.

  • Power supplies: 24 V/0.6 A, 1.3 A, 2.5 A and 4 A 12 V/2.0 A and 6.5 A
  • Small mounting surface thanks to the slimline design
  • Low energy consumption
  • Minimum energy losses in no-load operation
  • Connection via plug-in terminals
  • Input: 85... 264 V AC for 120 V and 230 V AC single-phase networks without changeover
  • Operation on: 110 to 300 V DC networks
  • Adjustable output voltage
  • Operating temperature: –20 to +70 °C
  • International package of standards
