Burkert Type 6518/6519 Eex M - Manifold Mount Hazardous Area Solenoid Valve

Model Number: 6518 6519 EEx m MANIFOLD

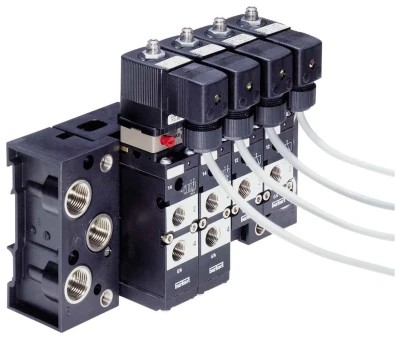

Manufactured in a corrosive resistant polyamide plastic the type 6518/6519 EEx m are solenoid valves ideal for use as a manifold valve system. With common inlet & exhaust ports through the manifold, these valves offer a high flow rate and are available in 3/2, 5/2 or 5/3 functions. These ¼" outlet ported valves can be manifold mounted in any combination of functions on the same manifold. Suitable for compressed air or neutral gases they conform to ATEX standards EEXm II T5 II 2G. These explosion proof valves are supplied with 3 mt cables.

  • Orifice DN 8.0 and 9.0
  • Port connections 1/4" BSP or NPT
  • Body materials Main valve Polyamide
  • Thread insert material Brass
  • Seal materials- NBR, NBR and PUR
  • Electrical connection With cable (3 m length)
  • Operating voltages 24, 110, and 230 V/UC
  • Duty cycle 100% continuously rated
  • Rating IP65
  • Approvals II 2G EEx m II T 5 PTB 00 ATEX 2129X II 2DIP 65T 100°C
