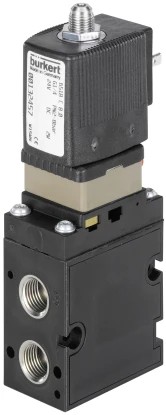

Burkert Type 6518/6519 Eex Ia Intrinsically Safe - 3/2 & 5/2 Way Hazardous Area Solenoid Valve

Model Number: 6518 6519 EEx ia

Designed in a corrosive resistant Polyamide plastic the Type 6518/6519 hazardous area solenoid valves are ideal for use in outside or aggressive atmospheres. Available in 3/2 or 5/2 functions these ¼" ported valves can be used as independent valves or manifold mounted. Suitable for compressed air or neutral gases they conform to ATEX standards EExia IIC T6.

  • Electrical Connection Din Plug
  • Port connections Threaded port ¼" bsp or NPT
  • Orifice DN 8.0
  • Body materials Main valve Polyamide
  • Thread insert material Brass
  • Seal Materials NBR, NBR and PUR
  • Operating voltages 24VDC
  • Ambient temperature -25 to +50°C
  • Duty cycle 100% continuously rated
  • Rating IP65
  • Approvals II 2G EExia II T6 PTB 01 ATEX 2101 II2D Exia D21 T80c
