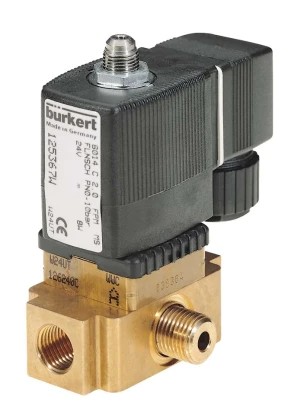

Burkert Type 6014 Eex M Banjo - Direct Mount Hazardous Area Solenoid Valve

Model Number: 6014 EEx m BANJO

The banjo valve types are pneumatic single-pilot valves, designed for quick mounting on to pneumatic actuators. Simply screwed into the pressure port of the actuator, the banjo valve can take up any position, as well as the pressure inlet position being adjustable. The banjo valve concept provides flexibility to meet any kind of application requirements: The valve body is made of polyamide (PA) or brass. The banjo coupler is anodised aluminium and the internal parts are made of stainless steel. The type 6014 can be delivered as EEx m II T4 / T6 or as EEx me II T4 / T6 version, both with a moulded cable plug and with a terminal box.

  • Pressure range 0–16bar
  • Port connections DN 1.5 - DN 2.0 mm
  • Seal material FPM
  • Body materials Polyamide (PA) or brass
  • Banjo coupler Aluminium, anodised
  • Banjo bolt Brass, nickel-plated
  • Seal FPM (Viton)
  • Electrical connection: With cable (3 m length) or with terminal box
  • Fluid Neutral gases e.g. compressed air
  • Operating voltages 24, 110, and 230 V/UC
  • Duty cycle 100% continuously rated
  • Rating IP65
  • Approvals EEx-m-II T4 / T6 and EEx-me-II T4/T6

Can't find the right part?

We're official distributors, we can get it

Burkert Type 6014 Banjo solenoid valve, 3/2 way normally closed function, 1/4BSP male ported, PA body, Brass Nickel plated banjo bolts, FKM seals, 0 - 10bar, 24VDC, With manual override.

£65.00 (ex VAT)

£78.00 (inc VAT)

Out of stock
