Model Number: SQ

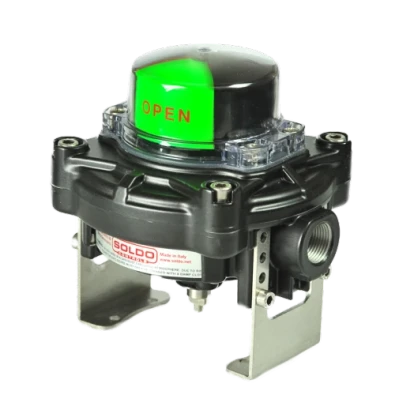

The SOLDO SQ SERIES compact limit switch box, designed for hazardous areas, provides a visual and electrical remote position feedback on automated valves.

Available in 316 L stainless steel, the explosion-proof enclosure matches the Ex d IIC T6 standards. The SQ switch box series offers a ready to mount solution thanks to the integrated Namur mounting kit.

The ideal compact solution for the Oil and Gas, both onshore and offshore, and Petrochemical industries.

Features:

  • Twin shaft design, ensuring a complete sealed device. The shaft is split into two parts, each fitted and sealed into the body and cover for the best weather insulation even during the opening operation.
  • Integrated mounting kit for Namur actuators.
  • Two cable entries, either metrics or imperial.
  • 316 L stainless steel housing for the maximum protection in hostile and corrosive environments
  • Easy wiring through the terminal PCB board
  • NOVA™ V3 switch option ensures extreme durability and high power switching capabilities
  • Concentric flame path design providing a self-centring system aligning shafts for a precise engagement.
  • Captive bolts on the screwed lid.
SQ Compact 316L stainless steel enclosure
01 El.mec. switch, SPDT, silver , max. 5A;250VAC, up tp SIL3, -40°C
2 nr. 2 switches or sensors
0 screw terminal strip with extra pass-through (standard)
E lectropolished finishing (only for stainless steel)
-
2 N° 2 M20x1.5 cable entries
0 red and green visual position indicator
X ATEX and IECEx certified box up to SIL3
2 certification marking: Ex II 2GD Exd IIC
3 weather proof IP66/IP68
L Ambient temperature range:-40+80 (standard temperature range)
7 316L stainless steel heavy duty enclosure (only for SQ)

HS Code: 8481 201000
Country Of Origin: Italy
SQ Compact 316L stainless steel enclosure
01 El.mec. switch, SPDT, silver , max. 5A;250VAC, up tp SIL3, -40°C
2 nr. 2 switches or sensors
0 screw terminal strip with extra pass-through (standard)
E lectropolished finishing (only for stainless steel)
-
2 N° 2 M20x1.5 cable entries
0 red and green visual position indicator
X ATEX and IECEx certified box up to SIL3
2 certification marking: Ex II 2GD Exd IIC
3 weather proof IP66/IP68
L Ambient temperature range:-40+80 (standard temperature range)
7 316L stainless steel heavy duty enclosure (only for SQ)

HS Code: 8481 201000
Country Of Origin: Italy

£636.44 (ex VAT)

£763.72 (inc VAT)

In stock
2-3 Days
