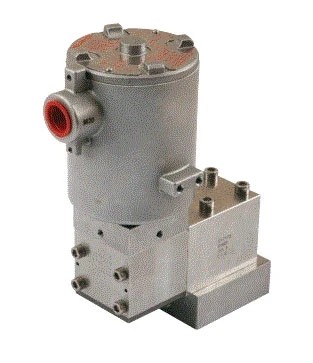

Midland Acs Dn5 Series - Iecex Hydraulic Solenoid Pilot Valve

Model Number: DN5

MIDLAND ACS DN5 SERIES - IECEX HYDRAULIC SOLENOID PILOT VALVE. This is the IECEX compliant version of the DN5 series metal to metal seated hydraulic control valve. Its stainless steel design ensures a leak-tight shut-off while incorporating a balanced internal piloting system to enable the low powered solenoid coil to switch the valve at high pressures.

  • Filtration: Recommended 10 micron absolute
  • Flow Rate: 20 (lpm)
  • Materials of Construction: Valve bodies and sub-plates 316L Stainless Steel; Wetted parts, various grades of stainless steel/ ceramic/ aluminium bronze; Metal to metal seated design
  • Ambient temperature range: Standard -20C to +60C; Low Temp -50C to +60C
  • Ingress Protection: IP67/NEMA 6
  • Operating pressure range: 0 to 690 bar depending on operator type
  • Fluid Media: Suitable for use with Minerals Oils, Water Glycols and Synthetic fluids
