Midland Acs Dn5 Series - Hydraulic Interface Control Valve

Model Number: DN5

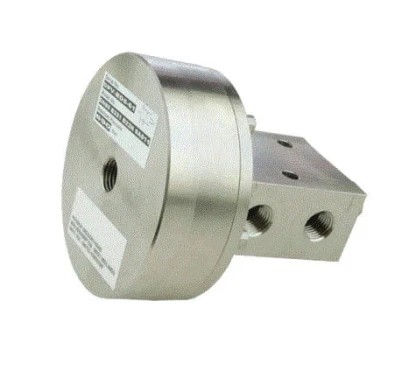

High-Pressure MIDLAND ACS DN5 SERIES Hydraulic Interface Control Valve This is a rugged piston operator and ball seated design, ensuring a leak-tight shut-off and positive control. The valve can also be supplied with a variety of operators, for a range of pressures and ambient temperatures (see selection chart). The DN5 High-Pressure Hydraulic Interface Valve can be individually in-line mounted or subplate/multi-station manifold mounted with integral cartridge check, flow control, and pressure relief valves, to provide a compact, cost-effective, weight and space-saving solution, for multi-well panels.

  • Flow Rate: 15 (lpm)
  • Minimum Air Pilot Pressure: 2.0 bar (44 psi)
  • Filtration: Recommended 10 micron absolute
  • Ingress Protection: IP66/NEMA 4X
  • Nominal Flow Rate: 15 LPM @ bar DP; Cv = 0.33
  • Ambient temperature range: Standard -20C to +60C; Low Temp -50C to +60C
  • Maximum Air Pilot Pressure: 12 bar (174 psi)
  • Materials of Construction:316L Stainless Steel body; Wetted parts: stainless steel; Seals: Rubber (Viton/PTFE)
  • Ports: NPT Hydraulic Port Connections 1/4" NPTF; Air Pilot Port Connection 1/4" NPTF
  • Operating pressure range: 0 to 690 bar depending on operator type
  • Fluid Media: Suitable for use with Mineral Oil, Synthetic Oil, and Water Glycol Fluids
