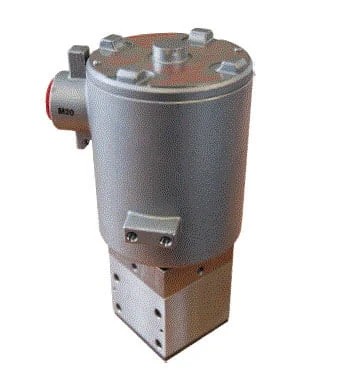

Midland Acs Dn2 Series - Iecex Hydraulic Solenoid Pilot Valve

Model Number: DN2

IECEX compliant Hydraulic Solenoid Pilot Valve. This is the IECEX compliant version of the DN2 series cartridge insert hydraulic control valve. Its stainless steel design ensures a leak-tight shut-off while incorporating a balanced internal piloting system to enable the low powered solenoid coil to switch the valve at high pressures.

  • Materials of Construction: Valve bodies and sub-plates 316L Stainless Steel; Wetted parts, various grades of stainless steel/ceramic; Fasteners, A4, grade 80 stainless steel; Springs, stainless steel
  • Filtration: Recommended 10 micron absolute
  • Operating pressure range: 0 to 690 bar depending on operator type
  • Fluid Media: Suitable for use with Mineral Oils, Water Glycols and Synthetic fluids
  • Ingress Protection: IP67
  • Ambient temperature range: Standard -20C to +60C; Low temp -50C to +60C
