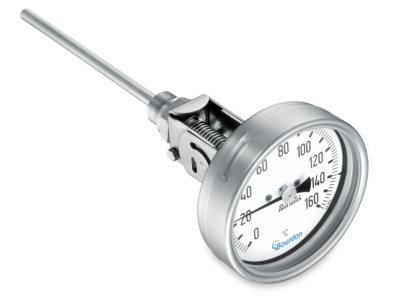

BOURDON TBHI130 - BIMETALLIC THERMOMETER - HEAVY INDUSTRY VERSION

Bourdon

Model Number: TBHI130

Protection rating (EN 60529): IP68
Dial: White, Aluminium
Pointer: Black, Aluminium, Adjustable
Window material: Instrument glass
Window gasket: Elastomer (silicone)
Nominal size: 130 mm
Case material: Stainless steel 1.4301 / AISI 304
Bezel ring material: Stainless steel 1.4301 / AISI 304
Temperature range: -70°C ... +600°C / -100°F ... +1100°F
Wetted parts: Immersion tube material Stainless steel 1.4571 / AISI 316Ti
Minimum immersion length for immersion tube 6 mm L2 ≥ 65 mm
Minimum immersion length for immersion tube 8 mm L2 ≥ 50 mm
Performance: Accuracy according to EN 13190 up to 250 °C: class 1 above 250 °C: class 2
Electrical data: ATEX Ex II 2 GDc (with option 0078)
Vibrations: IEC 60068-2-6 0.15 mm (10 ... 58 Hz) 2 g (58 Hz ... 150 Hz) MIL STD 810E, Meth. 514.4
0.015 g2/Hz (10 Hz) 0.015 g2/Hz (40 Hz) 0.00015 g2/Hz (500 Hz)
