Siemens Sitrans FC540 - Coriolis Mass Flow Meter System
Download Specification

Model Number: FC540

Request a quote

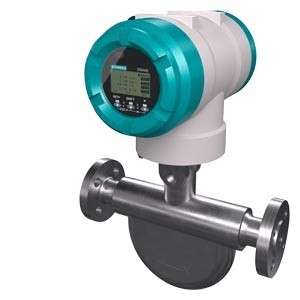

The SITRANS FC540 is a high-performance Coriolis mass flowmeter that combines the FCS500 sensor with the advanced FCT040 transmitter. It’s designed for demanding industrial and hygienic applications requiring superior accuracy, diagnostics, and communication capabilities.

  • Sizes: DN10 - DN80
  • High-accuracy measurement of mass flow, density, temperature, volume, concentration, viscosity, and thermal energy
  • Flow accuracy: ±0.1%; density accuracy: ±0.5 kg/m³
  • Smart diagnostics: Tube Health Check, self-verification, batch control, and net-oil measurement
  • Robust design: Dual-tube AISI 316L stainless steel sensor (FCS500)
  • Wide operating range: Flow: 0.8 to 255,000 kg/h / Temp: –70 °C to +200 °C / Pressure: up to 100 bar /
  • Certifications: ATEX, IECEx, EHEDG, 3A, SIL2/3, DNV, Lloyd’s
  • Communication: HART, Modbus, PROFIBUS PA, PROFINET
  • Transmitter: Advanced FCT040 – supports smart functions, compact or remote mount
