Model Number: FC140

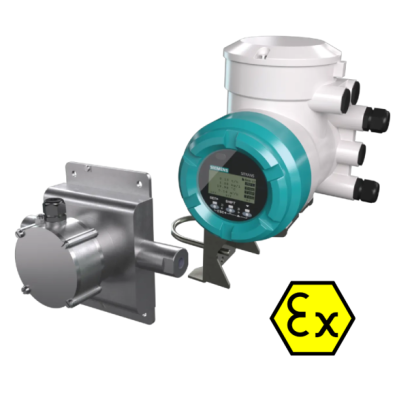

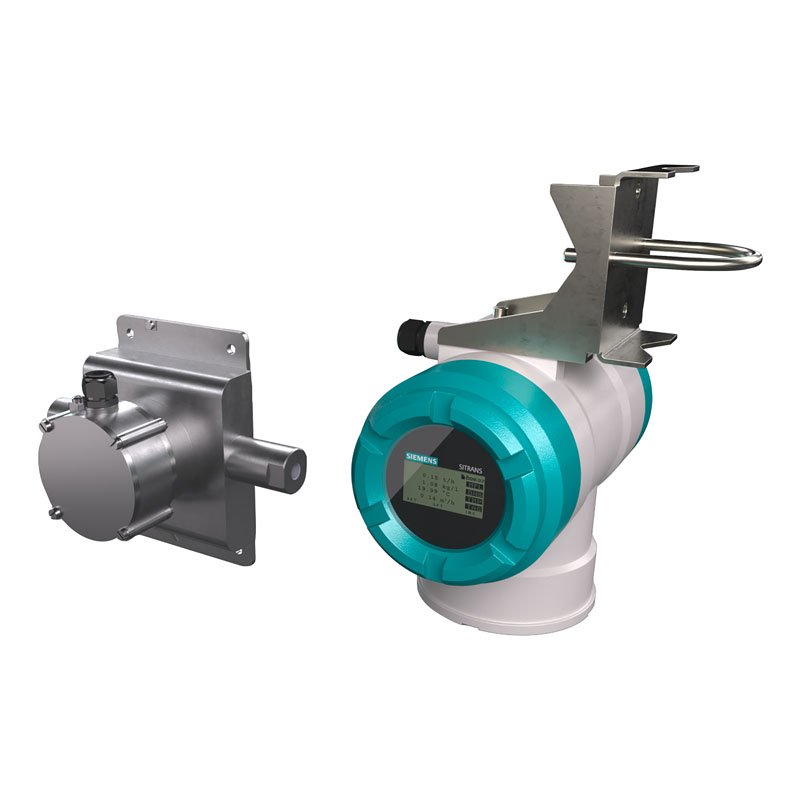

The SITRANS FC140 is a Coriolis mass flowmeter system designed for low-flow, high-precision measurement. It pairs the compact FCS100 sensor (nominal sizes DN1–DN8) with the FCT040 remote transmitter, offering enhanced accuracy and functionality compared to the FC120 (which uses FCT020).

  • High precision: ±0.1% mass flow accuracy
  • Low-flow measurement: DN1–DN8, ~21 to 950 kg/h
  • Advanced diagnostics: Tube Health Check, leak detection, batch control
  • Multi-parameter outputs: Mass, density, temperature, concentration, viscosity
  • Remote transmitter (FCT040): With digital communications (HART, Modbus, PROFIBUS, etc.)
  • Robust & hygienic: Operates from −50 °C to +260 °C, up to 285 bar; 3A, EHEDG options
  • Certified & calibrated: SIL2/3, ATEX/IECEx, ISO 17025 factory calibration
