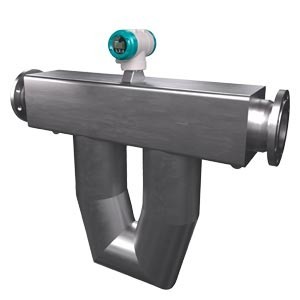

Siemens Sitrans FC740 - Coriolis Mass Flow Meter System

shipping
fast_delivery
globe
technical

Model Number: FC740

The Siemens SITRANS FC740 is a high-performance Coriolis mass flow measurement system, combining the FCS700 sensor with the FCT040 transmitter. It is engineered for advanced process control, high accuracy, and reliability, especially in demanding industrial environments.
Positioned as the premium variant in the Sitrans FC700 series, the FC740 builds on the compact FC720’s capabilities by offering enhanced diagnostics, expanded communication options, and extended functional features through its advanced transmitter.

  • High accuracy: ±0.1% of mass flow
  • Measures multiple variables: Mass flow, volume, density, temperature
  • Advanced FCT040 transmitter with DSP and diagnostics (NE107 support)
  • Supports multiple protocols: HART, PROFIBUS, PROFINET, Modbus
  • Robust stainless-steel sensor with no moving parts
  • Compact design for easy installation
  • Available sizes: DN15 to DN200 (½″ to 8″), covering flows up to 250,000+ kg/h
  • Ideal for demanding applications like custody transfer, dosing, batching
  • Certified for hazardous areas (ATEX, IECEx)
