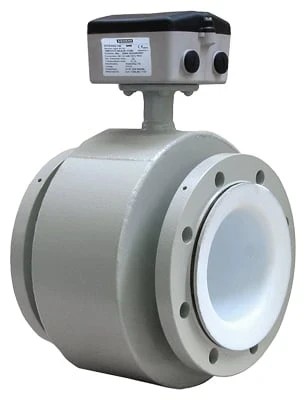

Siemens Sitrans F M Transmag 2 - Electromagnetic Flow Meter

Model Number: TRANSMAG 2

The high-powered flowmeter consists of the SITRANS F M TRANSMAG 2 transmitter and the sensor SITRANS F M 911/E being the best choice for special applications such as pulsating flow, media with low conductivity and a high percentage of solids. Application Examples: Pulp & Paper Industry, Mining industry.

  • Meassuring range: 0 to 10 m/s
  • Nominal Sizes: From DN 15 to DN 1000 (½" to 40")
  • Accuracy: ± 0.5 % of flow rate
  • Operating pressure: Max. 40 bar (Max. 580 psi)
  • Enclosure sensor: IP67 (NEMA 4x) IP68 (NEMA 6) - optional
  • Material: Carbon steel
