Model Number: 55

Max Supply Pressure:150 PSIG [10 BAR] Max Output Pressure: 100 PSIG [7 BAR] Flow Capacity: 9 SCFM (17 m3/HR) Accuracy: 0.3 psi (type)

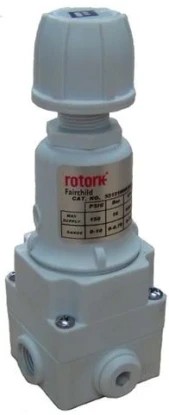

The Fairchild Model 55 is a compact precision polymer pressure regulator for high-performance applications where space or weight may be limited or material compatibility concerns dictate the use of a polymer construction regulator. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the supply valve in accordance with the flow velocity. The Model 55 pneumatic regulator features control sensitivity of 5" water column to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions. The Fairchild Model 50 pressure regulator will handle a 150 psi, 10 BAR maximum supply pressure and offers four (4) set point pressure ranges from 0-10 psi, 0-0.7 BAR, 0-70 kPa up to 2-100 psi, 0.1-7 BAR, 15-700 kPa.

The volume booster is designed with a very low dead-band between the operation of the supply valve and exhaust valve and achieves superb pressure control characteristics between forwarding flow and exhaust flow conditions.

  • Supply Pressure 250 PSIG Maximum
  • Outlet Pressure 150 PSIG Maximum
  • Very low dead-and between the supply valve and exhaust valve
  • Flow Capacity (SCFM)500 @100 PSIG inlet, 20 PSIG set point
  • High Accuracy, sensitivity and excellent low-pressure performance
