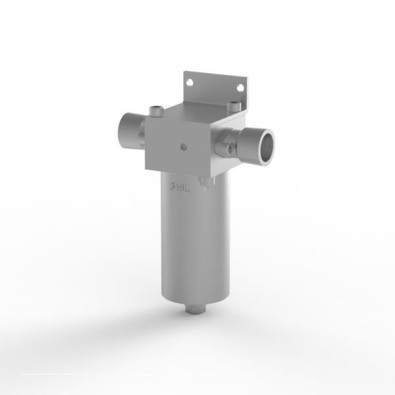

Bifold Model SH09 - Filters
Download Specification

Model Number: SH09-F1-AD-X3

Request a quote View Prices
  • Combined filter and pressure regulator in one compact unit
  • Stainless steel construction (typically 316) for corrosion resistance and harsh environments
  • Service ports: Commonly 3/8″ NPT connections (larger than SH06)
  • Filter element options: Replaceable micron ratings (e.g., 5–10 µm, 20–30 µm, 40–50 µm)
  • Drain: Manual condensate drain (automatic drain variants also exist)
  • Pressure regulation: Adjustable outlet pressure suitable for pneumatic and instrument air systems
  • Relief options: Self‑relieving regulator (vents downstream pressure during adjustment)
  • Maximum working pressure: Typically up to ~10‑20 bar (model dependent)
  • Media: Air and compatible inert gases in industrial control applications
  • Flow capacity: Higher than smaller SH06 units, appropriate for larger airflow requirements (due to larger port size)
SH09-F1-AD-X1
SH09-F1-AD-X1 - Model Code: Air preparation unit - 3/8 inch connections: -20°C to +135°C, 316L SS, Model Type: Filter, Self/Non Relieving: N/A, Drain option: Auto drain 16 bar maximum inlet pressure. NOTE: Max Temp Limit Reduced to +80°C, Output Pressure Range: N/A, Filter Element: 5 Micron filter element, Connections: NPT connections, Gauge port option: 1/8 inch Gauge port, Adjustment option: N/A, Drain screw option: Regular drain screw, Brackets: No Brackets, Bug Vent: N/A, Matl' Origin : N/A, Pillar Mount Kit: N/A, Panel Mount Kit: N/A, Esso Special: N/A, Sour Gas: N/A, Option: N/A, Option: N/A, Repair Kits: N/A,
SH09-F1-AD-X1 - Model Code: Air preparation unit - 3/8 inch connections: -20°C to +135°C, 316L SS, Model Type: Filter, Self/Non Relieving: N/A, Drain option: Auto drain 16 bar maximum inlet pressure. NOTE: Max Temp Limit Reduced to +80°C, Output Pressure Range: N/A, Filter Element: 5 Micron filter element, Connections: NPT connections, Gauge port option: 1/8 inch Gauge port, Adjustment option: N/A, Drain screw option: Regular drain screw, Brackets: No Brackets, Bug Vent: N/A, Matl' Origin : N/A, Pillar Mount Kit: N/A, Panel Mount Kit: N/A, Esso Special: N/A, Sour Gas: N/A, Option: N/A, Option: N/A, Repair Kits: N/A,
Check availability Request a quote
SH09-F1-AD-X3
SH09-F1-AD-X3 - Filter Regulator: Filter Regulator, Model Code: Air preparation unit - 3/8 inch connections: -20°C to +135°C, Model Type: Filter, Self/Non Relieving: N/A, Drain option: Auto drain 16 bar maximum inlet pressure. NOTE: Max Temp Limit Reduced to +80°C, Output Pressure Range: N/A, Filter Element: 20-30 Micron filter element, Connections: NPT connections, Gauge port option: 1/8 inch Gauge port, Adjustment option: N/A, Drain screw option: Regular drain screw, Bracket: Included, Bug Vent: N/A, Material Origin : N/A, Pillar Mount Kit: N/A, Panel Mount Kit: N/A, Esso Special: N/A, Flow Type: Standard Flow, L217: Standard, EAC stamping: No Additional Stamping, Sour Gas: Standard Service,
SH09-F1-AD-X3 - Filter Regulator: Filter Regulator, Model Code: Air preparation unit - 3/8 inch connections: -20°C to +135°C, Model Type: Filter, Self/Non Relieving: N/A, Drain option: Auto drain 16 bar maximum inlet pressure. NOTE: Max Temp Limit Reduced to +80°C, Output Pressure Range: N/A, Filter Element: 20-30 Micron filter element, Connections: NPT connections, Gauge port option: 1/8 inch Gauge port, Adjustment option: N/A, Drain screw option: Regular drain screw, Bracket: Included, Bug Vent: N/A, Material Origin : N/A, Pillar Mount Kit: N/A, Panel Mount Kit: N/A, Esso Special: N/A, Flow Type: Standard Flow, L217: Standard, EAC stamping: No Additional Stamping, Sour Gas: Standard Service,
Check availability Request a quote
SH09-F1-MD-X3
SH09-F1-MD-X3 - Filter Regulator: Filter Regulator, Model Code: Air preparation unit - 3/8 inch connections: -20°C to +135°C, Model Type: Filter, Self/Non Relieving: N/A, Drain option: Manual drain 20 bar maximum inlet pressure, Output Pressure Range: N/A, Filter Element: 20-30 Micron filter element, Connections: NPT connections, Gauge port option: 1/8 inch Gauge port, Adjustment option: N/A, Drain screw option: Regular drain screw, Brackets: No Brackets, Bug Vent: N/A, Material Origin : N/A, Pillar Mount Kit: N/A, Panel Mount Kit: N/A, Esso Special: N/A, Flow Type: Standard Flow, L217: Standard, EAC stamping: No Additional Stamping, Sour Gas: Standard Service,
SH09-F1-MD-X3 - Filter Regulator: Filter Regulator, Model Code: Air preparation unit - 3/8 inch connections: -20°C to +135°C, Model Type: Filter, Self/Non Relieving: N/A, Drain option: Manual drain 20 bar maximum inlet pressure, Output Pressure Range: N/A, Filter Element: 20-30 Micron filter element, Connections: NPT connections, Gauge port option: 1/8 inch Gauge port, Adjustment option: N/A, Drain screw option: Regular drain screw, Brackets: No Brackets, Bug Vent: N/A, Material Origin : N/A, Pillar Mount Kit: N/A, Panel Mount Kit: N/A, Esso Special: N/A, Flow Type: Standard Flow, L217: Standard, EAC stamping: No Additional Stamping, Sour Gas: Standard Service,
Check availability Request a quote
SH09-F1-MD-X4-K84
SH09-F1-MD-X4-K84 - Filter Regulator: Filter Regulator, Model Code: Air preparation unit - 3/8 inch connections: -20°C to +135°C, Model Type: Filter, Self/Non Relieving: N/A, Drain option: Manual drain 20 bar maximum inlet pressure, Output Pressure Range: N/A, Filter Element: 40-50 Micron filter element, Connections: NPT connections, Gauge port option: 1/8 inch Gauge port plugged, Adjustment option: N/A, Drain screw option: Regular drain screw, Brackets: No Brackets, Bug Vent: N/A, Material Origin : N/A, Pillar Mount Kit: N/A, Panel Mount Kit: N/A, Esso Special: N/A, Flow Type: Standard Flow, L217: Standard, EAC stamping: No Additional Stamping, Sour Gas: Standard Service,
SH09-F1-MD-X4-K84 - Filter Regulator: Filter Regulator, Model Code: Air preparation unit - 3/8 inch connections: -20°C to +135°C, Model Type: Filter, Self/Non Relieving: N/A, Drain option: Manual drain 20 bar maximum inlet pressure, Output Pressure Range: N/A, Filter Element: 40-50 Micron filter element, Connections: NPT connections, Gauge port option: 1/8 inch Gauge port plugged, Adjustment option: N/A, Drain screw option: Regular drain screw, Brackets: No Brackets, Bug Vent: N/A, Material Origin : N/A, Pillar Mount Kit: N/A, Panel Mount Kit: N/A, Esso Special: N/A, Flow Type: Standard Flow, L217: Standard, EAC stamping: No Additional Stamping, Sour Gas: Standard Service,
Check availability Request a quote
