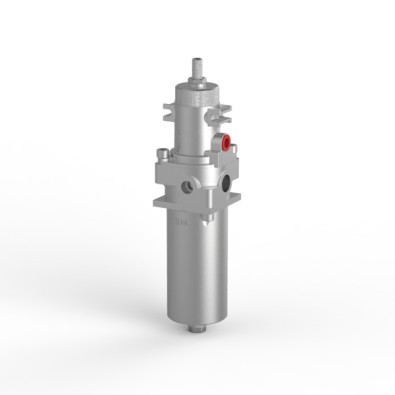

Bifold Model SH06 - Filter Regulators Auto Drain
Download Specification

Model Number: SH06-FR-AD

Request a quote View Prices
  • Combined air filter and pressure regulator
  • Automatic condensate drain for continuous unattended operation
  • Replaceable filter element (5 µm – 40 µm)
  • Maximum inlet pressure up to ~20 bar
  • Adjustable outlet pressure ranges for instrument air systems
  • Stainless steel construction (typically 316)
  • 1/4″ process connections with gauge port
  • Suitable for air and inert gas service
  • Flow Capacity (approximate): 1/4″ unit: Cv ~0.8–1.2 (~30–40 SCFM / 0.8–1.1 m³/min) / Larger sizes: Cv ~2.5+, flow ~80–100 SCFM
SH06-FR-NR-AD-08-X3-K10
Air preparation unit - 1/4" connections: -20°C to +135°C, 316L SS,
Model Type: Filter regulator, Self/Non Relieving: Non relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.25 - 8 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Black plastic hand wheel,
Drain screw option: Regular drain screw

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C, 316L SS,
Model Type: Filter regulator, Self/Non Relieving: Non relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.25 - 8 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Black plastic hand wheel,
Drain screw option: Regular drain screw

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-NR-AD-10-X3
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Non relieving,
Drain option: Auto drain
16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Non relieving,
Drain option: Auto drain
16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-02-X3
Filter Regulator, Model Code: Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.03 - 2 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Filter Regulator, Model Code: Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.03 - 2 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-06-X1
Air preparation unit - 1/4" connections: -20°C to +135°C, 316L SS,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.2 - 6 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C, 316L SS,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.2 - 6 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-06-X3
Air preparation unit - 1/4" connections: -20°C to +135°C, 316L SS,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.2 - 6 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C, 316L SS,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.2 - 6 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-08-X1-K39
Filter Regulator, Model Code: Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.25 - 8 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/4" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Filter Regulator, Model Code: Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.25 - 8 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/4" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-08-X1-L217
Filter Regulator, Model Code: Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.25 - 8 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: China Option,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Filter Regulator, Model Code: Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.25 - 8 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: China Option,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-08-X3
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.25 - 8 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.25 - 8 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-08-X3-K10
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.25 - 8 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Black plastic hand wheel,
Drain screw option: Regular drain screw,
Brackets: No Brackets

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.25 - 8 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Black plastic hand wheel,
Drain screw option: Regular drain screw,
Brackets: No Brackets

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-08-X3-L217
Filter Regulator, Model Code: Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.25 - 8 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8 inch Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: China Option,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Filter Regulator, Model Code: Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.25 - 8 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8 inch Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: China Option,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-10-X1
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8 inch Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8 inch Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010

£344.76 (ex VAT)

£413.71 (inc VAT)

In stock
1 Week+
SH06-FR-SR-AD-10-X1-H2S
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8 inch Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Sour Gas Compliant,

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8 inch Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Sour Gas Compliant,

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-10-X1-K10
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Black plastic hand wheel,
Drain screw option: Regular drain screw,
Brackets: No Brackets,

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Black plastic hand wheel,
Drain screw option: Regular drain screw,
Brackets: No Brackets,

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-10-X1-K10-H2S
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8 inch Gauge port,
Adjustment option: Black plastic hand wheel,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Sour Gas: NACE MR0175 / ISO 15156 metal wetted parts,

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8 inch Gauge port,
Adjustment option: Black plastic hand wheel,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Sour Gas: NACE MR0175 / ISO 15156 metal wetted parts,

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-10-X1-K39
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/4" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/4" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-10-X1-K84
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port plugged,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port plugged,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-10-X1-K94
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/4" Gauge port plugged,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/4" Gauge port plugged,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-10-X1-L217
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 5 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-10-X3-K10
Air preparation unit - 1/4" connections: -20°C to +135°C, 316L SS,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Black plastic hand wheel,
Drain screw option: Regular drain screw,
Brackets: No Brackets

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C, 316L SS,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Black plastic hand wheel,
Drain screw option: Regular drain screw,
Brackets: No Brackets

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-10-X3-K10-H2S
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8 inch Gauge port,
Adjustment option: Black plastic hand wheel,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Sour Gas Compliant,

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8 inch Gauge port,
Adjustment option: Black plastic hand wheel,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Sour Gas Compliant,

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-10-X3-K39
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/4" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/4" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-10-X3-K6
Air preparation unit - 1/4" connections: -20°C to +135°C, 316L SS,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: BSPP connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C, 316L SS,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: BSPP connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-10-X3-K84
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port plugged,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port plugged,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-10-X3-K94-K10-H2S
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/4" Gauge port plugged,
Adjustment option: Black plastic hand wheel,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Sour Gas Compliant,

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/4" Gauge port plugged,
Adjustment option: Black plastic hand wheel,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Sour Gas Compliant,

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-10-X3-L217
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: China Option,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 20-30 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: China Option,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-10-X4
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 40-50 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 40-50 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-10-X4-K39
Bifold Filter Regulator.
Maximum Supply Pressure: 16 bar.
Output Pressure Range: 0.4 - 10 bar.
Material: 316L Stainless steel body, Fluoroelastomer seals.
Port Size: 1/4" NPT.
Gauge Port: 1/4".
Relief Function: Self relieving.
Media & Ambient Temp Range: -20 to +135 degC
Drain Type: Automatic
Filter Element: 40-50 Micron

HS Code: 8481 101990
Country of Origin: United Kingdom
Net Weight: 1.50kg
Check availability Request a quote
SH06-FR-SR-AD-10-X4-K6
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 40-50 Micron filter element,
Connections: BSPP connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 40-50 Micron filter element,
Connections: BSPP connections,
Gauge port option: 1/8" Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: Standard,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Check availability Request a quote
SH06-FR-SR-AD-10-X4-L217
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 40-50 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8 inch Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: China Option,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Air preparation unit - 1/4" connections: -20°C to +135°C,
Model Type: Filter regulator,
Self/Non Relieving: Self relieving,
Drain option: Auto drain 16 bar maximum inlet pressure.
NOTE: Max Temp Limit Reduced to +80°C,
Output Pressure Range: 0.4 - 10 bar output range,
Filter Element: 40-50 Micron filter element,
Connections: NPT connections,
Gauge port option: 1/8 inch Gauge port,
Adjustment option: Allen key adjustment,
Drain screw option: Regular drain screw,
Brackets: No Brackets,
Flow Type: Standard Flow,
L217: China Option,
EAC stamping: No Additional Stamping,
Sour Gas: Standard Service,

HS Code: 8481 209010
Check availability Request a quote
SH09-FR-NR-AD-08-X3
SH09-FR-NR-AD-08-X3 - Filter Regulator: Filter Regulator, Model Code: Air preparation unit - 3/8 inch connections: -20°C to +135°C, Model Type: Filter regulator, Self/Non Relieving: Non relieving, Drain option: Auto drain 16 bar maximum inlet pressure. NOTE: Max Temp Limit Reduced to +80°C, Output Pressure Range: 0.25 - 8 bar output range, Filter Element: 20-30 Micron filter element, Connections: NPT connections, Gauge port option: 1/8 inch Gauge port, Adjustment option: Allen key adjustment, Drain screw option: Regular drain screw, Brackets: No Brackets, Bug Vent: N/A, Material Origin : N/A, Pillar Mount Kit: N/A, Panel Mount Kit: N/A, Esso Special: N/A, Flow Type: Standard Flow, L217: Standard, EAC stamping: No Additional Stamping, Sour Gas: Standard Service,
SH09-FR-NR-AD-08-X3 - Filter Regulator: Filter Regulator, Model Code: Air preparation unit - 3/8 inch connections: -20°C to +135°C, Model Type: Filter regulator, Self/Non Relieving: Non relieving, Drain option: Auto drain 16 bar maximum inlet pressure. NOTE: Max Temp Limit Reduced to +80°C, Output Pressure Range: 0.25 - 8 bar output range, Filter Element: 20-30 Micron filter element, Connections: NPT connections, Gauge port option: 1/8 inch Gauge port, Adjustment option: Allen key adjustment, Drain screw option: Regular drain screw, Brackets: No Brackets, Bug Vent: N/A, Material Origin : N/A, Pillar Mount Kit: N/A, Panel Mount Kit: N/A, Esso Special: N/A, Flow Type: Standard Flow, L217: Standard, EAC stamping: No Additional Stamping, Sour Gas: Standard Service,
Check availability Request a quote

Not sure which product you need?

Contact our technical sales advisors here.

Need a bespoke part?

Our team of engineers are fully equipped to provide bespoke system design and manufacture.

This process involves specifying, procuring, calibrating and maintaining instrumentation and control systems for industrial and commercial process control applications.

Call our technical sales team for advice

+44 (0) 151 343 9966
sales@finecontrols.com
helpdesk technician

Latest news

View all news
2 way solenoid valves

Ask the Expert

Burkert Solenoid Valve A guide to uses, features and types.

Ask the Expert

Valves for Hydrogen Applications – Ensuring Safe and Efficient Operations
shutterstock_2373911915

Ask the Expert

Hydrogen Embrittlement Explained | Prevent Failure with the Right Valves
shutterstock_2440843891

Ask the Expert

Your Hydrogen Valve Checklist

This site uses cookies to monitor site performance and provide a more responsive and personalised experience. You must agree to our use of certain cookies. For more information on how we use and manage cookies, please read our Privacy Policy.

Close Accept all & close
