Offering long term durability and reliability, Burkert's range of temperature sensors, switches and transmitters are fully configured to provide you peace of mind. Stainless steel designs enable applications in virtually all purities, viscosities and pressures of fluids, from simple recycled cooling water to burner gases. The PT100 Sensor is the basis of Burkert temperature control devices and is followed on by several models.

The Type 8400 temperature sensor/switch is specially designed to switch a valve and establish an ON/OFF control loop. The switching point can be programmed with the 3 keypads on the display or can optionally be programmed externally from a programmable logic controller over 4-20 mA loop. This unit's measuring range is from -40°F to 257°F and it benefits from either a transistor or relay output.

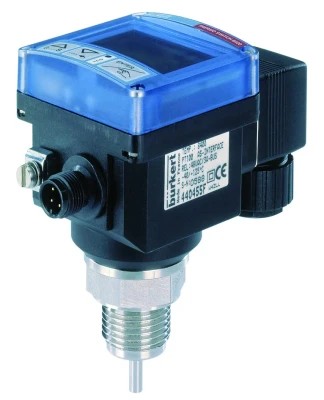

BURKERT TYPE 8400 - TEMPERATURE SENSOR/SWITCH Model Number: 8400

Measuring range -40°F to 257°F, Switching range +/-1.0°F, Repeatability 0.4%, Sensor element Pt100, Wetted parts: stainless steel. Voltage Supply: 12-30 VDC.

Info / Buy

Enquire

Technical Specifications User Manual

BURKERT TYPE 8611 - UNIVERSAL PROCESS CONTROLLER eCONTROL Model Number: 8611

Continuous 2point 3point & On/Off control. Ratio control function. Sensor inputs (4-20 mA, 0-10 V, frequency, RDT). Control of proportional process & motor valves. Burkert proportional valves and flow meters are memorized. 1/16 DIN size panel version

Info / Buy

Enquire

Technical Specifications User Manual

BURKERT TYPE 8619 - multiCELL MULTIFUNCTION TRANSMITTER/CONTROLLER Model Number: 8619

Display: LC graphic display, light blue backlit; 128x168 pixels resolution; German, English, French languages. Keypad: 4 soft keys [F1] [F2] [F3] [F4] for dynamic functions 1 central navigation key.

Info / Buy

Enquire

Technical Specifications User Manual

BURKERT TYPE 8620 - mxCONTROL MULTIFUNCTION CONTROLLER Model Number: 8620

The mxCONTROL multifunction controller, is a microprocessor controller designed to automate the control of process variables within a water treatment system. Sophisticated electronics and state of the art control algorithms ensure that optimum process control is maintained at all times, with minimal operator intervention.

Info / Buy

Enquire

Technical Specifications

Showing 1 to 4 of 4 (1 Pages)

If you have any questions regarding Burkert temperature sensors or have a specialist application you'd like to discuss, our technical sales team will be happy to assist you. Give us a call on +44 (0) 800 328 8511 or contact us online. Our team are experienced with products from a range of established brands including Siemens, Fairchild and Midland. So if you can't find what you're looking for, our team will be able to assist. We also offer engineering services including bespoke system design, batch control and repair services.
