Burkert Level Control

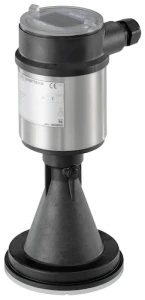

The Type 8136 is a non-contact radar level transmitter for continuous level measurement. This unit is available in two versions: One with encapsulated horn antenna which is particularly suitable for level measurement of aggressive liquids in small vessels. The other with a plastic horn antenna particularly suitable for flow measurement in open flumes or gauge measurement in waters.

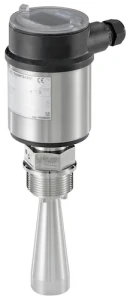

The Type 8137 is a non-contact radar level transmitter for continuous level measurement. The unit is available in two versions: - with thread and horn antenna (ø 40 mm) particularly suitable for use in small tanks and process vessels for measurement of practically any product. Also with flange and horn antenna (ø 40 or 75 mm) particularly suitable for use in storage tanks and process vessels for measurement of products such as solvent, hydrocarbons and fuels under extremely difficult process conditions.

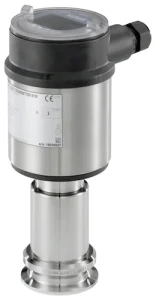

The Type 8138 is a non-contact radar level transmitter for continuous level measurement. It is particularly suitable for use in small vessels that contain beverage liquids under sanitary process conditions.
THIS PRODUCT IS NO LONGER AVAILABLE Range: 0.30 up to 7 meters, Accuracy

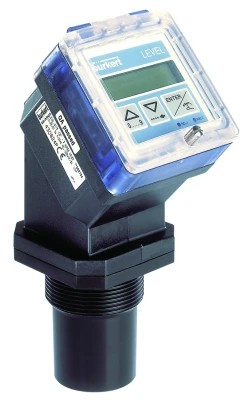

THIS PRODUCT IS NO LONGER AVAILABLE Pressure Range: 0.30 up to 10 metres, Accuracy: +/ 0.25% of full scale, Resolution: +/- 3mm, Supply Voltage: 18-32 VDC or 110-230AC, Medium temperature: -40 up to +80°C.
The Type 8177 is a non-contact ultrasonic level measuring device, designed for continuous level measurement in open or closed vessels. The unit is suitable for liquids, but also for solids, in virtually all industries, particularly in water and waste water management.
The Type 8188 is a level measurement device with cable, rod, both interchangeable probe or with coax probe, designed for continuous level measurement. The unit is suitable for liquids, for industrial use in all areas of process technology. With a measuring range up to 75 m, the 8188 is best suited for tall vessels. Even process conditions such as strong steam generation, density fluctuations or changes of the dielectric constant do not influence the accuracy of the measurement. Build-up or condensation on the probe or vessel wall do not influence the measuring result. A liquid interface measurement is also possible with the Type 8188, typically an oil/water interface.
The Type 8189 is a level measurement device with interchangeable rod probe, designed for continuous level measurement. The unit is suitable for liquids, for industrial use in all areas of process technology. the main application targets are in Food and Beverage (F&B) and pharmaceutical tanks to the new rod in stainless steel 1.4435 with Ra < 0.76 µm. For applications with corrosive liquids a PFA coated version is available.
Burkert’s offering of compact level transmitters comes in the form of the following technologies:
- Radar Transmitters: Pressures from vacuum to 40 Bar / Temperatures of -40°C to 150°C.
- Ultrasonic Transmitter Type 8177: temperatures from -40°C - 80°C / vessel pressures of -0.2 – 2 Bar / 0.4 – 8m measuring range.
- Guided Wave Transmitters: Temperatures of -40°C - 150°C and vessel pressures from vacuum to 40 Bar with measuring parameters from 0.08 to 75 meters.
All of the Burkert level transmitters mentioned above are 2–wire units working on 4-20mA output. They have the benefit of either a blind or digital display and full ATEX approval.
