Burkert Flow Control
With over 20 years of relationships with Burkert and decades of experience within our team, Fine Controls are able to advise on all aspects of Flow Control requirements. We’re able to bring you a comprehensive range of flow control products that you can be assured are industry leading.
The Burkert range includes - but is not limited to:
Flow Sensors, Control Valves, Mass Flow Meters, Electromagnetic Flow Meters, Ultrasonic Flow Transmitters, Switches, Positioners, Controllers and Insertion Fittings.

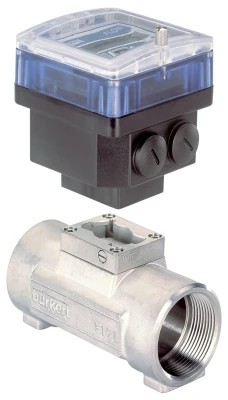

Paddle wheel technology (DN6 to DN65), Flow indication including 2 totalisers with optional alarm relays, 4-20mA and calibrated pulse output, Available as compact version with options for remote mounting.
Measuring range 0.05 - 10 m/s, Repeatability =/-0.25% o.R. Display 8-digit LC-display, Fluid conductivity > 20 uS, Fluid temperature maximum 0 to 80°C, Sensor material Body in PVDF electrodes Stainless Steel.
DN 3 up to DN 100, Measuring range 0-10 l/h, 0-280 m3/h, Accuracy +/- 0.2%. Process connection DIN 11851, Tri-Clamp, Threaded ISO 228-1 and NPT, Flanged DIN 2501, ANSI 150 RF. Body materials: Stainless steel, Carbon Steel. Lining PTFE or PP
High accuracy. Medium with high viscosity. Mounting and dismounting of the sensor head by a quarter-turn. Connection to Burkert devices in remote versions.
For highly viscous fluids. Electronics for indication, monitoring, transmitting, On/Off. control and batch control.
Indication, monitoring, transmitting and On/Off control in one device. Programmable outputs (transistor or relay). Automatic-calibration: Teach-In. Communication - external setpoints and process value (4-20 mA).
Continuous 2point 3point & On/Off control. Ratio control function. Sensor inputs (4-20 mA, 0-10 V, frequency, RDT). Control of proportional process & motor valves. Burkert proportional valves and flow meters are memorized. 1/16 DIN size panel version
Display: LC graphic display, light blue backlit; 128x168 pixels resolution; German, English, French languages. Keypad: 4 soft keys [F1] [F2] [F3] [F4] for dynamic functions 1 central navigation key.
The mxCONTROL multifunction controller, is a microprocessor controller designed to automate the control of process variables within a water treatment system. Sophisticated electronics and state of the art control algorithms ensure that optimum process control is maintained at all times, with minimal operator intervention.
Accuracy 0.3% OFS (0.1%Repeatability), Neutral gas applications, Max Pressure 10bar, PROFIBUS DP & DeviceNet communication.
Accuracy 0.3% OFS (0.1% Repeatability), Liquids, Max Pressure 10bar, Max Flow 600mL/min.
Port Connection: G 1/2 - G 2 (NPT & Rc Available on request) Body Material: Brass (CuZn39Pb2) & stainless steel (316L -1.4435), all in stainless steel (316L -1.4435) or all in PVC, PP, PVDF, PE Seal Material: FKM or EPDM Fluid Pressure: PN10, PN16
Port Connection: G 1/2 - G 2 (NPT & Rc Available on request) Body Material: Stainless steel (316L -1.4435), brass, PVC, PP, PVDF Seal Material: FKM or EPDM Fluid Pressure: PN10, PN16
Whatever your industry, project or bespoke requirements, our support team is made up entirely of qualified and experienced engineers who are fully conversant with the entire Burkert product range.
All our flow control products are available with downloadable manuals and technical data sheets, but if you have any special flow measurement challenges you’d like to discuss, get in touch with our team.
