Burkert Type 8035 - Batch Controller

Model Number: 8035

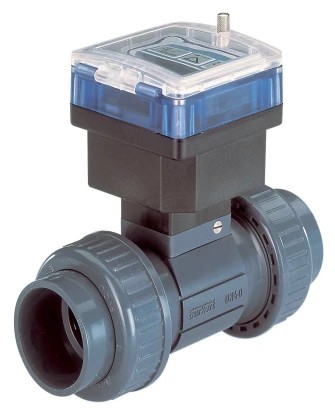

The Burkert Type 8035 paddle-wheel flow transmitter and batch controller is quickly and easily connected together by a bayonet. The transmitter component converts the measured signal and displays the actual value. Display and menu-guided operating elements allow a customised adjustment of all measuring parameters.

Digital Batch Controller benefits include:

  • Compact or remote version for DN 06 to 65
  • Dosing
  • Automatic-calibration: TEACH-IN
  • Possible check of input/output signals
  • Batched volume and totalizers displayed

Features of the Burkert Type 8035 are:

  • Pipe diameter DN 15 - 50
  • Measuring range 0.3 - 10 m/s
  • Measuring error +/-0.5%
  • Fluid temperature maximum 0°C - +100°C
  • Fitting Brass, ST/ST or Plastic
  • Voltage supply 12 .. 30 VDC or 90-240 VAC
  • Output signal 4...20 mA
  • Relay output 2, freely programmable
