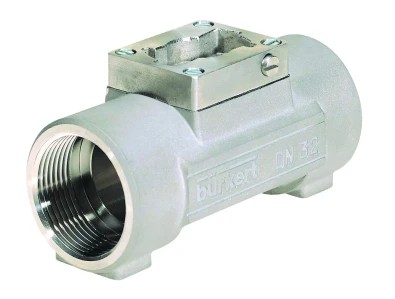

Burkert Type S030 - Insertion Fitting For Flow Measurement

Model Number: S030

The fitting Burkert Type S030 - Insertion Fitting has a built-in paddlewheel to measure the flowrate. When liquid flows through the pipe, the paddle-wheel is set in rotation producing pulses which frequency is proportional to the flowrate. This leads to a very leak-proof construction, called the ”INLINE Quarterturn” technology. The paddle-wheel rotation is detected contactless through the fitting wall. The sensor unit can be snapped-on or removed without opening the pipe or interrupting the process.

Some features and benefits include:

  • DN06 to DN65
  • Closed pipe system, i.e. sensor inside fitting
  • Quarter-turn technology
  • Electronics available for - Indication, Monitoring, Transmitting - On/Off control, Batch control

Can't find the right part?

We're official distributors, we can get it

Flow sensor ST/ST body,PVDF paddle wheel, Ceramic axis and bearings, PN16, Max temp 100c, 1/2bsp female, flow range 3-100L/min

£456.30 (ex VAT)

£547.56 (inc VAT)

Out of stock

liquid flow sensor body in stainless steel with PVDF Turbine, Max pressure 16bar.

£378.90 (ex VAT)

£454.68 (inc VAT)

Out of stock
