Model Number: 8030

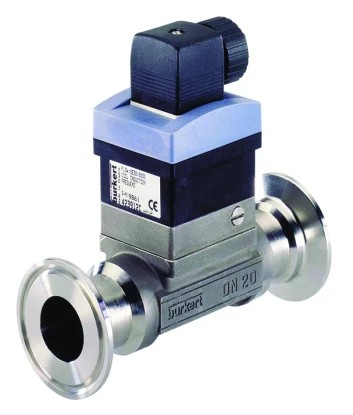

The Burkert Type 8030 paddle-wheel flow sensor for continuous flow measurement is especially designed for use in neutral, slightly aggressive, solid free liquids. The sensor is made of a compact fitting with integrated paddle-wheel and an electronic-nodule, quickly and easily connected together by a bayonet. The hall-sensor produces a frequency signal proportional to the flow which can easily be transmitted and processed.

Some of the features of the Burkert Type 8030 are:

  • Pipe diameter DN 15...50
  • Measuring range 0.3...10m/s
  • Measuring error
  • Output signal Transistor PNP and NPN
  • Supply voltage 12...30 VD
  •  Enclosure IP 65
  • Fluid temperature maximum 0°C … +100°C
Type SE30
Port connection 0000 - not applicable
Material PC - polycarbonat
Seal material 00 - without seal or no explanation
Sensor R3 - signal pickup through hall sensor
Measuring range B - firmly adjustabled
function sensor F3 - measurement, pulse output, totalizers
Design L - PC-case, IP65, plug, DIN 43650, PG9
Voltage BDN - 12-36 volts
Frequency DC - DC
Output signal Z - open collector PNP/NPN
Ambient temperature (max) 60
Ambient temperature (min) -15

HS Code 90261021
Country of Origin France
Net Weight 0.173 KG
Type SE30
Port connection 0000 - not applicable
Material PC - polycarbonat
Seal material 00 - without seal or no explanation
Sensor R3 - signal pickup through hall sensor
Measuring range B - firmly adjustabled
function sensor F3 - measurement, pulse output, totalizers
Design L - PC-case, IP65, plug, DIN 43650, PG9
Voltage BDN - 12-36 volts
Frequency DC - DC
Output signal Z - open collector PNP/NPN
Ambient temperature (max) 60
Ambient temperature (min) -15

HS Code 90261021
Country of Origin France
Net Weight 0.173 KG

£157.50 (ex VAT)

£189.00 (inc VAT)

Burkert Type S030
Port connection GM86 - G 1 threaded port
Material MS - brass
Seal material FF - FKM
Sensor P5 - PVDF paddlewheel with inductive coil
Measuring range 0 - no description
function sensor 00 - without
Design 0 - without
Voltage 000 - without
Frequency 00 - without
Output signal 0 - standard

HS Code: 90269000
Country Of Origin: France
Nett Wt Each: 0.77KG

£267.30 (ex VAT)

£320.76 (inc VAT)

Paddlewheel with inductive coil Body material Stainless steel Seal material FKM Sensor PVDF paddlewheel

£183.60 (ex VAT)

£220.32 (inc VAT)
