Siemens Flow Meters
Dramatically improve the accuracy and performance of your control system with Fine Controls selection of Siemens flow meters. Siemens offers an extensive range of flowmeters able to deal with most process conditions on both liquids and gases applications.
For standard water applications, we offer the Mag5100 flow meter - specified by UK waterboards - available in a range of sizes and connection options. On applications where a flow meter needs to be retrofitted the FU series of clamp-on flow meters including the FUS, FUP, FUE and FUG ranges make an ideal solution to monitor flow without breaking into the existing pipework.
DN10 - DN100, Hygienic to 3A and EHEDG standards, Profibus, Modbus, Devicenet, Hart and CANOpen communication, Local of remote mount display/transmitter, Mag Flow Meter. Please see SIEMENS DANFOSS MAG 5000/6000 - For Flow Transmitter & Cable Kits.
• Nominal Sizes ½” to 78” • Measuring range 0 – 100 bar • Enclosure ratings IP67 & IP68 • Temperature of medium -40 to 180°C (MAG3100 HT) • Mag Flow Meter For quick Delivery products please see MAG3100P Please see SIEMENS DANFOSS MAG 5000/6000 - For Flow Transmitter & Cable Kits.
Stainless steel or hastelloy wetted parts, Max pressure 10 BAR, Max temperature 180°C, Safe or hazardous area duty, Coriolis mass Flow Meter.
Flow range 0.1 - 520000 kghr Stainless steel or hastelloy wetted parts Max pressure 410 BAR Safe or hazardous area duty Coriolis Mass Flow Meter
Nominal sizes from 4' to 48', Operating pressure Max. 430 bar, Temperature of medium From -200 to 200°C, Transducer types O-ring, Flange, InLine Ultrasonic Flow Meter.

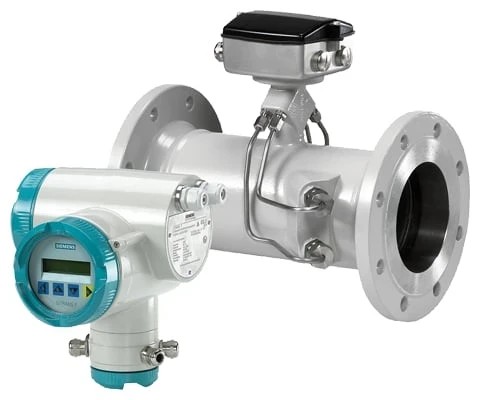

Nominal Sizes From DN 50 to DN 300, Operating pressure Max 40 bar, Temperature of medium From -10 to 160°C, Transducer types Integrated, InLine Ultrasonic Flow Meter.
Nominal sizes From 4' to 160', Operating pressure Max. 40 bar, Temperature of medium From -20 to 200°C, In Line Ultrasonic Flow Meter.
Take your steam, gas and liquid measurements to a whole new level with the digitally based SITRANS FX330 vortex flowmeter. Designed primarily for applications in auxiliary, supply and energy systems, this device is also highly versatile for use in the process industry. With its new features and enhanced functions like the integrated heat meter, NAMUR NE107 conform status alarms,and extensive Ex approvals, the SITRANS FX330 is also ideal for a broad range of chemical, power, and oil and gas installations.
DN50 - DN150, Flow range 0-92,000kghr, Accuracy 0.15% , Max pressure 150 BAR, Coriolis Mass Flow Meter.
DN2 - DN100, Wafer pattern, Max temperature 200°C (HT Version) Choice of liner and electrode material, Mag 1100 Mag Flow Meter. Please see SIEMENS DANFOSS MAG 5000/6000 - For Flow Transmitter & Cable Kits.
DN25 - DN1200, Flanged process connections, Max pressure 40 BAR, Rubber liner with 316 stainless steel electrodes, Mag Flow Meter Please see SIEMENS DANFOSS MAG 5000/6000 - For Flow Transmitter & Cable Kits.
THIS PRODUCT IS NO LONGER AVAILABLE FROM 30TH MAY 2017 Being that the SITRANS FST020 clamp-on ultrasonic flow meter offers basic functionalities, it is considered an optimal and affordable alternative to more complex flow measurement solutions. To make product selection straightforward while still offering solutions that fit the requirements of the water and wastewater, HVAC, power, chemical and general process industry, the product configuration has been simplified. In turn, the SITRANS FST020 features a user-friendly design, a very competitive price and delivery times that are up to par with market expectations.
The SITRANS FS230 flow system consists of a SITRANS FST030 transmitter paired with SITRANS FSS200 clamp-on ultrasonic sensors, which are available in three different models: WideBeam® (High-Precision), Universal and High-Temperature. THIS PRODUCT REPLACES ALL PREVIOUS SIEMENS CLAMP ON UNITS FOR USE ON LIQUIDS.
Nominal sizes From 1/2' to 12', Operating Pressure Max 100 BAR, Input/Output: 4-20 mA, Pulse/Freq. 0.5Hz 24V DC as NAMUR, Communication: HAR.
The SITRANS FC410 flowmeter solution is the lightest and most compact Coriolis system worldwide – you can reduce skid size, fit multiple units into the tightest areas, simplify installation into both new and existing applications, and minimize costs.
Measuring range: Qp 15 to 36000 m3/h. Nominal size: From DN 50 to DN 1200 (2' to 48'). Accuracy:
The SITRANS FC430 is amongst the first Coriolis flowmeters to offer SIL 3 certification on the system, meeting the highest standards of safety and reliability.
THIS PRODUCT IS NO LONGER AVAILABLE FROM 30TH MAY 2017 The SITRANS FUS880 is a battery-powered flow meter that can be retrofitted onto existing pipelines and is approved for underground installation and operation. It has been developed especially for the irrigation industry and can measure on single or double walled pipes and on smooth or corrugated constructions. The meter has wetted transducers assuring superior accuracy and performance. It has galvanic isolated pulse outputs for both flow directions and a display that indicates measured values, signal and operation information. Application Examples: Irrigation distribution systems, Pumping stations, On-farm outlets.
THIS PRODUCT IS NO LONGER AVAILABLE FROM 30TH MAY 2017 SITRANS FUE1010 Clamp On Ultrasonic Flow Meter is a highly accurate clamp-on non-intrusive ultrasonic flowmeter for revenue grade thermal energy sub-metering and energy efficiency distribution monitoring, with a real time coefficient of performance (COP) for HVAC systems. The meter is available in single and dual channel or dual path configurations, with your choice of IP65 (NEMA 4X) dedicated wall mount or IP40 (NEMA 1) portable enclosures.
THIS PRODUCT IS NO LONGER AVAILABLE FROM 30TH MAY 2017 SITRANS FUG1010 clamp-on non-intrusive ultrasonic flow meter is ideal for natural and process gas applications, including checkmetering, allocation, production, storage and gas fired power station applications. The meter is available in single, dual and optional four beam configurations, with your choice of IP65 (NEMA 4X) or IP65 (NEMA 7) and IP66 (NEMA 7) explosion proof enclosures.
THIS PRODUCT IS NO LONGER AVAILABLE FROM 30TH MAY 2017 SITRANS FUH1010 clamp-on non-intrusive ultrasonic flow meter is ideal for applications carrying crude oil, refined petroleum or liquefied gas. It is available in single, dual and optional four beam configurations, with choice of IP65 (NEMA 4X) or IP65 (NEMA 7) and IP66 (NEMA 7) wall mount enclosures. The meter has two application areas: Volumetric flowmetering and mass/standard volume flowmetering.
THIS PRODUCT IS NO LONGER AVAILABLE FROM 30TH MAY 2017 The SITRANS FUP1010 clamp-on non-intrusive ultrasonic flow meter offers maximum versatility plus battery power for portable field use. It can operate in either WideBeam transit time or Doppler mode, making it suitable for virtually any liquid. The meter is ideal for general flow survey work where high accuracy is required and is available in single and dual channel or dual path configurations.
Fine Controls offers a comprehensive selection of flowmeters using technologies including electromagnetic, Coriolis, ultrasonic, vortex, rotary piston and differential pressure flowmeters. We stock products from Burkert, Fairchild and Siemens.
Whatever your industry, project or bespoke requirements, Just check the downloadable TechSpecs sheets next to each product for details of its suitability.
