Resideo Braukmann D06F Water Pressure Reducing Valve

shipping
fast_delivery
globe
technical

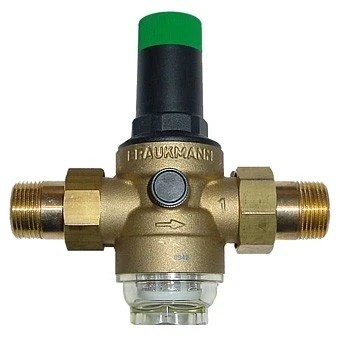

Resideo Braukmann D06F Water Pressure Reducing Valve
Download Specification

Model Number: D06F

Request a quote View Prices

The low noise  Resideo Braukmann D06 is one of the most popular PRVs on the market, with over 15 million units installed across Europe. The D06F protects domestic, commercial and industrial applications against excessive water supply pressure. It reduces both water consumption and noise from water hammer while minimising overpressure damage. The set outlet pressure can be maintained even when there are wide inlet pressure fluctuations. A drop tight seal means outlet water pressure will not increase when there is no flow. The D06F has been awarded the Waterwise Marque.

  • Approvals: DVGW, Up to size 1 1/4" approved for low noise, Group 1 without limitations
  • Media: Water, compressed air and nitrogen
  • Body material: brass, dezincification resistant
  • Spring bonnet material: synthetic material
  • Port connection type: external threads
  • Integral filter: 0,16 mm
  • Pressure setpoint range: 1,5 ... 6 bar
D06F-1/2A
Resideo D06F-1/2A Pressure Red.Valve
Maximum inlet pressure: 16 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 40 °C
Material: EPDM Diaphragm & Seal, Brass Body, Clear Filter bowl
Port size: 1/2" BSPP male connections
Gauge port size: 1/4" BSPP
DVGW and WRAS (up to 23°C) approved

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 0.8KG

£93.00 (ex VAT)

£111.60 (inc VAT)

In stock
1-2 Days
D06F-1/2B
Resideo D06F-1/2B Pressure Red.Valve
Maximum inlet pressure: 25 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 70 °C
Material: EPDM Diaphragm & Seal, Brass Body, Brass Filter bowl
Port size: 3/4" BSPP male connections
Gauge port size: 1/4" BSPP
DVGW and WRAS (up to 23°C) approved

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 0.8KG
Check availability Request a quote
D06F-11/2A
Resideo D06F-1 1/2A Pressure Red.Valve
Maximum inlet pressure: 16 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 40 °C
Material: EPDM Diaphragm & Seal, Brass Body, Clear Filter bowl
Port size: 1 1/2" BSPP male connections
Gauge port size: 1/4" BSPP
DVGW and WRAS (up to 23°C) approved

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 3.3KG

£304.22 (ex VAT)

£365.06 (inc VAT)

In stock
1-2 Days
D06F-11/2B
Resideo D06F-1 1/2B Pressure Red.Valve
Maximum inlet pressure: 25 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 70 °C
Material: EPDM Diaphragm & Seal, Brass Body, Brass Filter bowl
Port size: 1.1/2" BSPP male connections
Gauge port size: 1/4" BSPP
DVGW and WRAS (up to 23°C) approved

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 3.3KG
Check availability Request a quote
D06F-11/4A
Resideo D06F-1 1/4A Pressure Red.Valve
Maximum inlet pressure: 16 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 40 °C
Material: EPDM Diaphragm & Seal, Brass Body, Clear Filter bowl
Port size: 1 1/4" BSPP male connections
Gauge port size: 1/4" BSPP
DVGW and WRAS (up to 23°C) approved

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 2.0KG
Check availability Request a quote
D06F-11/4B
Resideo D06F-1 1/4BGB Pressure Red.Valve
Maximum inlet pressure: 25 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 70 °C
Material: EPDM Diaphragm & Seal, Brass Body, Brass Filter bowl
Port size: 1 1/4" BSPP male connections
Gauge port size: 1/4" BSPP
DVGW and WRAS (up to 23°C) approved

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 2.0KG
Check availability Request a quote
D06F-1A
Resideo D06F-1A Pressure Red.Valve
Maximum inlet pressure: 16 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 40 °C
Material: EPDM Diaphragm & Seal, Brass Body, Clear Filter bowl
Port size: 1" BSPP male connections
Gauge port size: 1/4" BSPP
DVGW and WRAS (up to 23°C) approved

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 1KG
Check availability Request a quote
D06F-1B
Resideo D06F-1B Pressure Red.Valve
Maximum inlet pressure: 25 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 70 °C
Material: EPDM Diaphragm & Seal, Brass Body, Brass Filter bowl
Port size: 1" BSPP male connections
Gauge port size: 1/4" BSPP
DVGW and WRAS (up to 23°C) approved

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 1.4KG
Check availability Request a quote
D06F-2A
Resideo D06F-2A Pressure Red.Valve
Maximum inlet pressure: 16 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 40 °C
Material: EPDM Diaphragm & Seal, Brass Body, Clear Filter bowl
Port size: 2" BSPP male connections
Gauge port size: 1/4" BSPP
DVGW and WRAS (up to 23°C) approved

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 4.5KG

£346.75 (ex VAT)

£416.10 (inc VAT)

Pre-order
2-3 Weeks
D06F-2B
Resideo D06F-2B Pressure Red.Valve
Maximum inlet pressure: 25 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 70 °C
Material: EPDM Diaphragm & Seal, Brass Body, Brass Filter bowl
Port size: 2" BSPP male connections
Gauge port size: 1/4" BSPP
DVGW and WRAS (up to 23°C) approved

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 4.5KG
Pre-order
Check availability Request a quote
D06F-3/4A
Resideo D06F-3/4A Pressure Red.Valve
Maximum inlet pressure: 16 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 40 °C
Material: EPDM Diaphragm & Seal, Brass Body, Clear Filter bowl
Port size: 3/4" BSPP male connections
Gauge port size: 1/4" BSPP
DVGW and WRAS (up to 23°C) approved

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 1KG
Check availability Request a quote
D06F-3/4B
Resideo D06F-3/4B Pressure Red.Valve
Maximum inlet pressure: 25 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 70 °C
Material: EPDM Diaphragm & Seal, Brass Body, Brass Filter bowl
Port size: 3/4" BSPP male connections
Gauge port size: 1/4" BSPP
DVGW and WRAS (up to 23°C) approved

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 1KG
Check availability Request a quote
