Model Number: SF

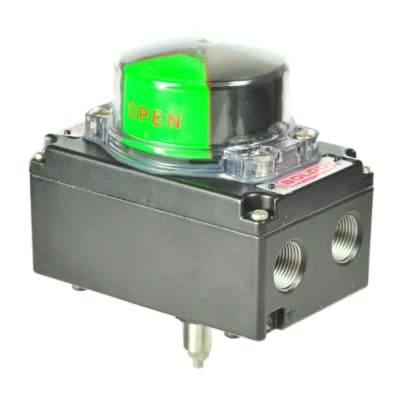

The SOLDO SF SERIES limit switch box designed for safe and hazardous areas provides a visual and electrical remote position feedback on automated valves.

Available in die-cast aluminium with different lid choices, from the same enclosure material, for a complete metallic device, to the transparent polycarbonate cover or a flat lid without visual indication. Designed for weatherproof applications, it can also match the Ex ia IIC T6 standards with the integral intrinsically safe certification, covering both enclosure and electrical components inside.

The Soldo multi-application limit switch box solution, covering from industrial automation to food and beverage, from chemical to naval, from Oil and Gas, both onshore and offshore, to Petrochemical industries.

Features:

  • Twin shaft design, ensuring a complete sealed device. The shaft is split into two parts, each fitted and sealed into the body and cover for the best weather insulation even during the opening operation.
  • Suitable for artic application, down to -50°C
  • Two cable entries, either metrics or imperial.
  • Enhanced corrosion resistance thanks to the thick polyester powder coating on aluminium housings.
  • Easy wiring through the terminal PCB board
  • NOVA V3™ switch option ensures extreme durability and high power switching capabilities
  • 4-20 mA position transmitter options
  • ASI communication protocol board
  • Captive bolts on the screwed lid.
SF70200-10X11E4

SF Aluminium LSB, stainles steel shaft, ISO 05 mounting pattern
70 Inductive NAMUR proxy NJ2-V3-N, 2 wire, 8V DC, up to SIL3, reduced temp.
2 nr. 2 switch / sensors
0 screw terminal strip with extra pass-through (standard)
0 standard black polyester powder coating (only for aluminium)
-
1 N° 2 1/2" NPT cable entries
0 red and green visual position indicator
X ATEX and IECEx certified box up to SIL3
1 certification marking: Ex II 2GD Exi
1 Weather proof IP66/IP67
E Ambient temperature range:-25+80 (standard temperature range for switch codes 70, 75)
4 Copper free aluminum heavy duty body and cover (only for SF)


HS Code: 8481 201000
Country Of Origin: Italy
SF70200-10X11E4

SF Aluminium LSB, stainles steel shaft, ISO 05 mounting pattern
70 Inductive NAMUR proxy NJ2-V3-N, 2 wire, 8V DC, up to SIL3, reduced temp.
2 nr. 2 switch / sensors
0 screw terminal strip with extra pass-through (standard)
0 standard black polyester powder coating (only for aluminium)
-
1 N° 2 1/2" NPT cable entries
0 red and green visual position indicator
X ATEX and IECEx certified box up to SIL3
1 certification marking: Ex II 2GD Exi
1 Weather proof IP66/IP67
E Ambient temperature range:-25+80 (standard temperature range for switch codes 70, 75)
4 Copper free aluminum heavy duty body and cover (only for SF)


HS Code: 8481 201000
Country Of Origin: Italy

£296.96 (ex VAT)

£356.35 (inc VAT)
