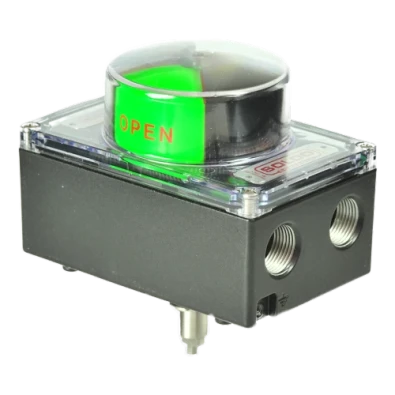

Soldo Sb Series - Limit Switch Box

Model Number: SB

The SOLDO SB SERIES are available in die-cast aluminium, with different lid choices, from the same enclosure material, for a complete metallic device, to the transparent polycarbonate cover or to a flat lid without visual indication. Designed for weatherproof applications, it can also match the Ex ia IIC T6 standards with the integral intrinsically safe certification, covering both enclosure and electrical components inside.

The Soldo multi-application limit switch box solution, covering from industrial automation to food and beverage, from chemical to naval, from Oil and Gas, both onshore and offshore, to Petrochemical industries.

Features:

  • Twin shaft design, ensuring a complete sealed device. The shaft is split into two parts, each fitted and sealed into the body and cover for the best weather insulation even during the opening operation.
  • Suitable for artic application, down to -50°C
  • Two cable entries, either metrics or imperial.
  • Enhanced corrosion resistance thanks to the thick polyester powder coating on aluminium housings.
  • Easy wiring through the terminal PCB board
  • NOVA V3™ switch option ensures extreme durability and high power switching capabilities
  • 4-20 mA position transmitter options
  • ASI communication protocol board
  • Captive bolts on the screwed lid.

Can't find the right part?

We're official distributors, we can get it

SB Aluminum enclosure with policarbonate cover
C4 Mag. reed SPDT, Herm. sealed, max. 1A;24VDC up to SIL3, -20°C
2 nr. 2 switches or sensors
0 screw terminal strip with extra pass-through (standard)
0 standard black polyester powder coating (only for aluminum)
-
2 N° 2 M20x1.5 cable entries
0 red and green visual position indicator
W weather proof limit switch box up to SIL3
0 ordinary location
1 Weather proof IP66/IP67
A Ambient temperature range:-20+80 (standard temperature range)
2 Aluminum enclosure with clear policarbonate cover (only for SB)

HS Code: 8481 201000
SB Aluminum enclosure with policarbonate cover
C4 Mag. reed SPDT, Herm. sealed, max. 1A;24VDC up to SIL3, -20°C
2 nr. 2 switches or sensors
0 screw terminal strip with extra pass-through (standard)
0 standard black polyester powder coating (only for aluminum)
-
2 N° 2 M20x1.5 cable entries
0 red and green visual position indicator
W weather proof limit switch box up to SIL3
0 ordinary location
1 Weather proof IP66/IP67
A Ambient temperature range:-20+80 (standard temperature range)
2 Aluminum enclosure with clear policarbonate cover (only for SB)

HS Code: 8481 201000

£191.66 (ex VAT)

£230.00 (inc VAT)

Out of stock
