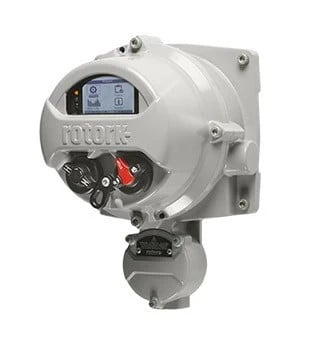

Rotork Remote Hand Station - For Iq3 Range

Model Number: RHS

Actuators are widely used in many industries and in some cases have to be mounted in places where it is hazardous, inconvenient or unpleasant to operate.Rotork’s superior solution matches the comprehensive, feature rich interface provided with IQ and SI 3rd generation range actuators.

The Rotork Remote Hand Station (RHS) enables remote configuration, interrogation and operation of the connected actuator up to 100m from the valve installation.

With configuration via a Rotork Bluetooth® Setting Tool Pro maintains the familiar user friendly experience associated with IQ and SI range actuators.

Configuration and data log information can be viewed and extracted locally from the RHS instead of gaining access to the actuator. Power for the RHS is supplied by the actuator, avoiding the need for supplementary power supplies.

Some of the key features and benefits of the Rotork Remote Hand Station include:

  • Installation using standard data cable, up to 100 metres away from the actuator
  • Pole or wall mountable
  • Replica of IQ 3rd generation user interface, including setup and configuration
  • Powered via the attached actuator (24 VDC output)
  • Explosionproof option available
  • Enclosure IP66 / IP68 (7 m, 72 Hours)
  • Double-sealed
  • Simple setup
  • Actuator data logs available for viewing and downloading locally

See our full range of Rotork IQ3 Actuators in our main Rotork Actuator range.
